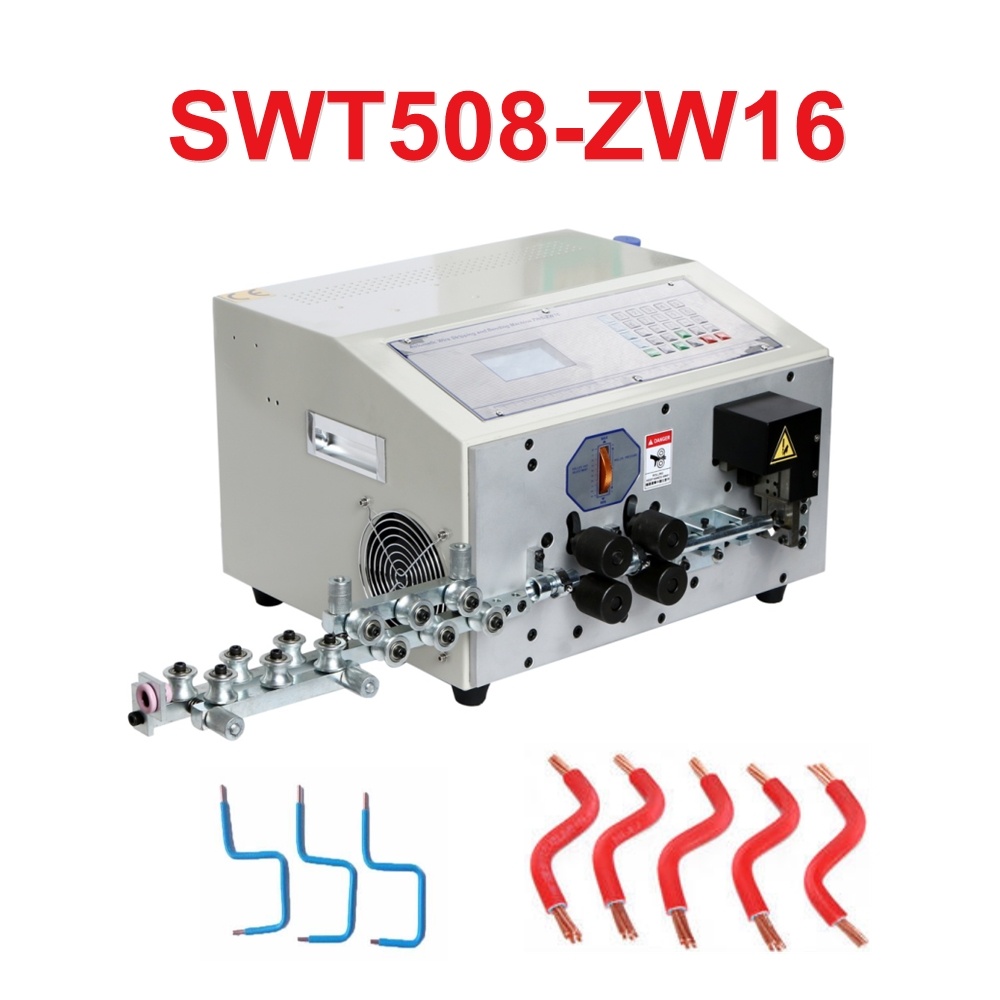

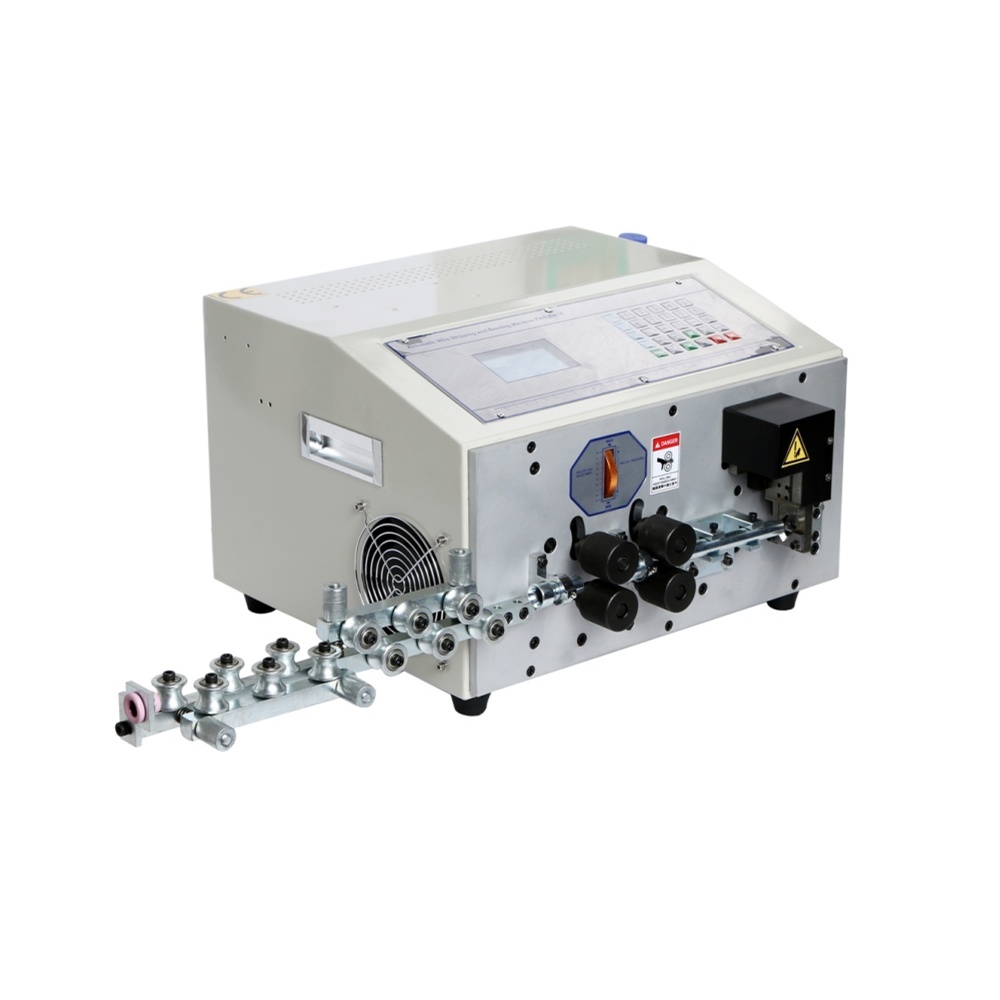

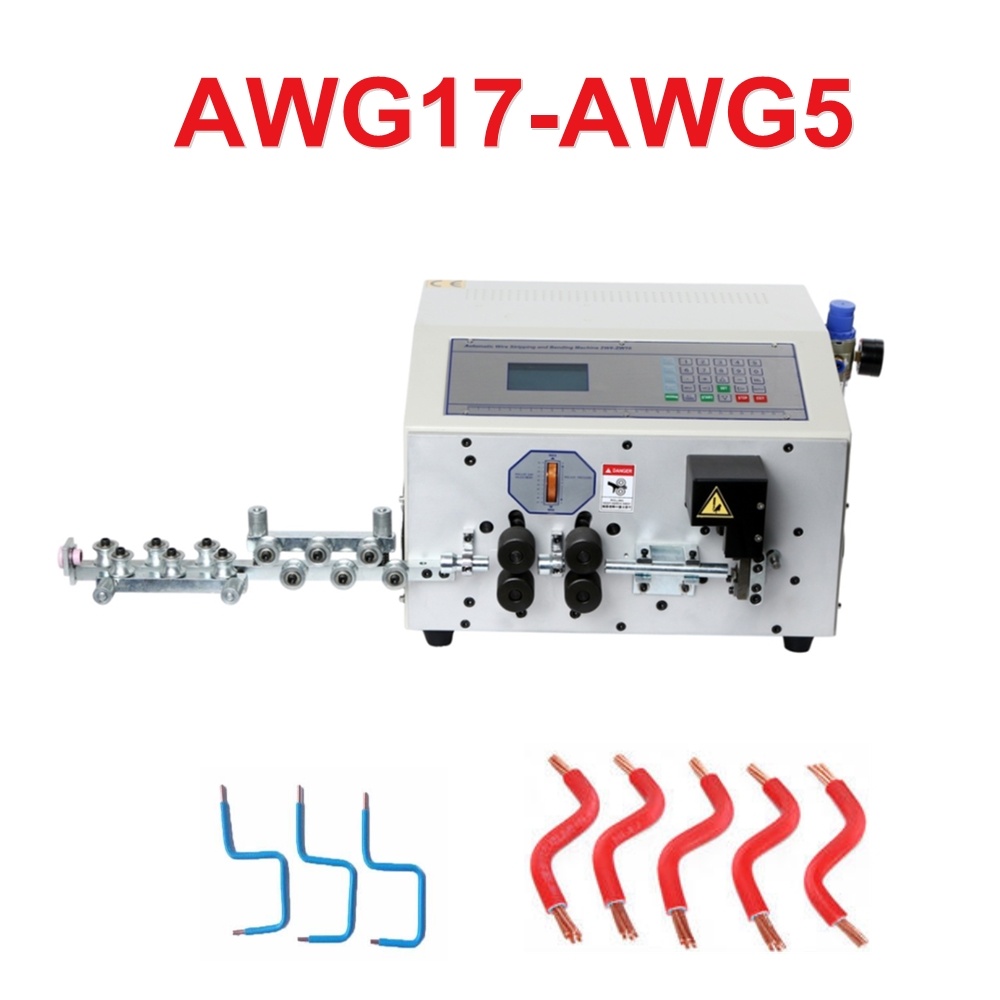

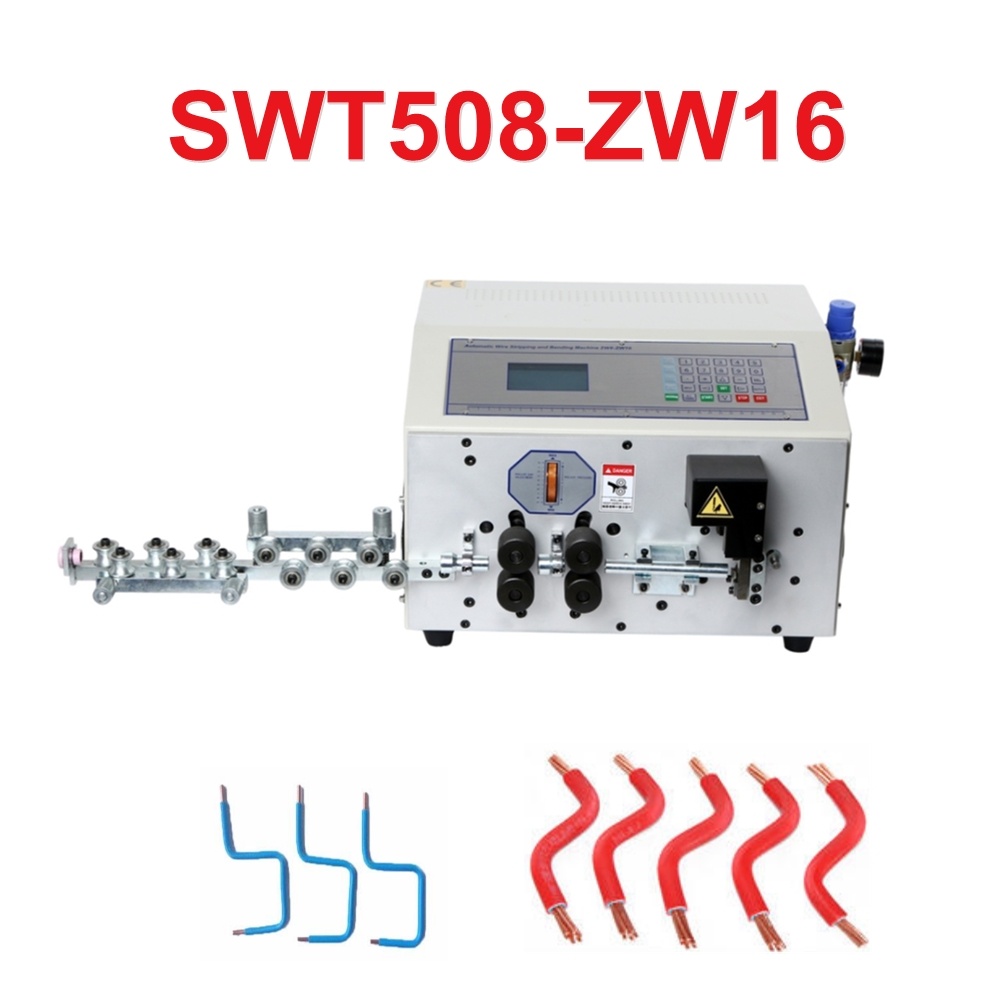

SWT508-ZW16 updated 4 rollers computer automatic wire stripping and bending machine for angle bender and customized bending type PVC Electrical Wire Bending Pipe hydraulic compatible for 1-16mm2 AWG17 to AWG5
Reviews(0)
Product Detail
Product Tags

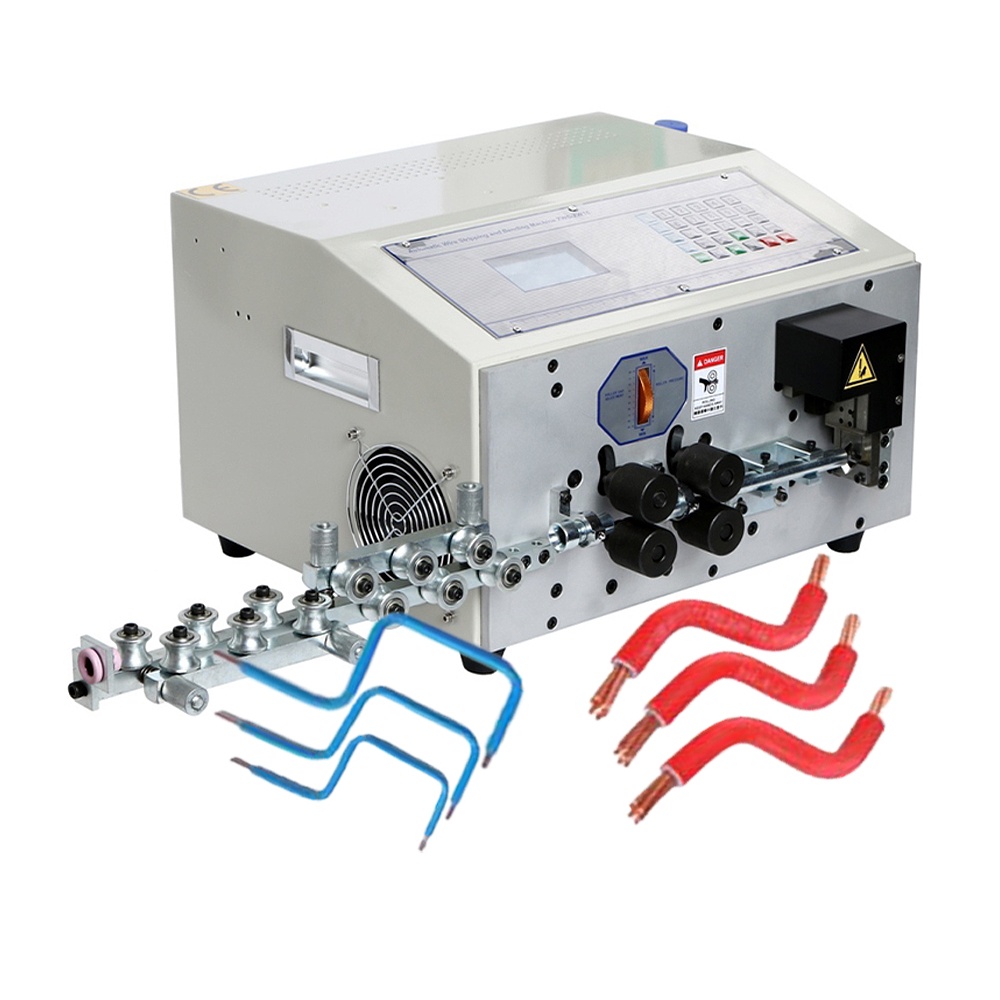

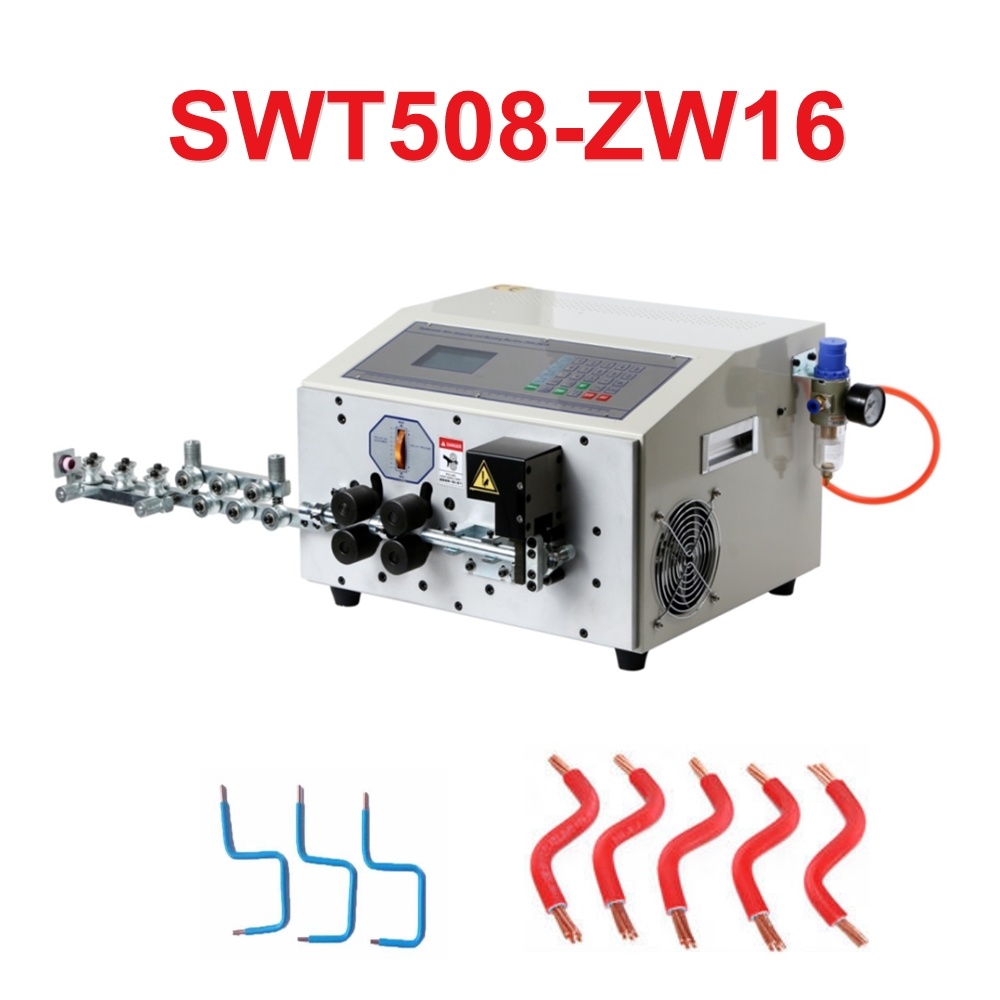

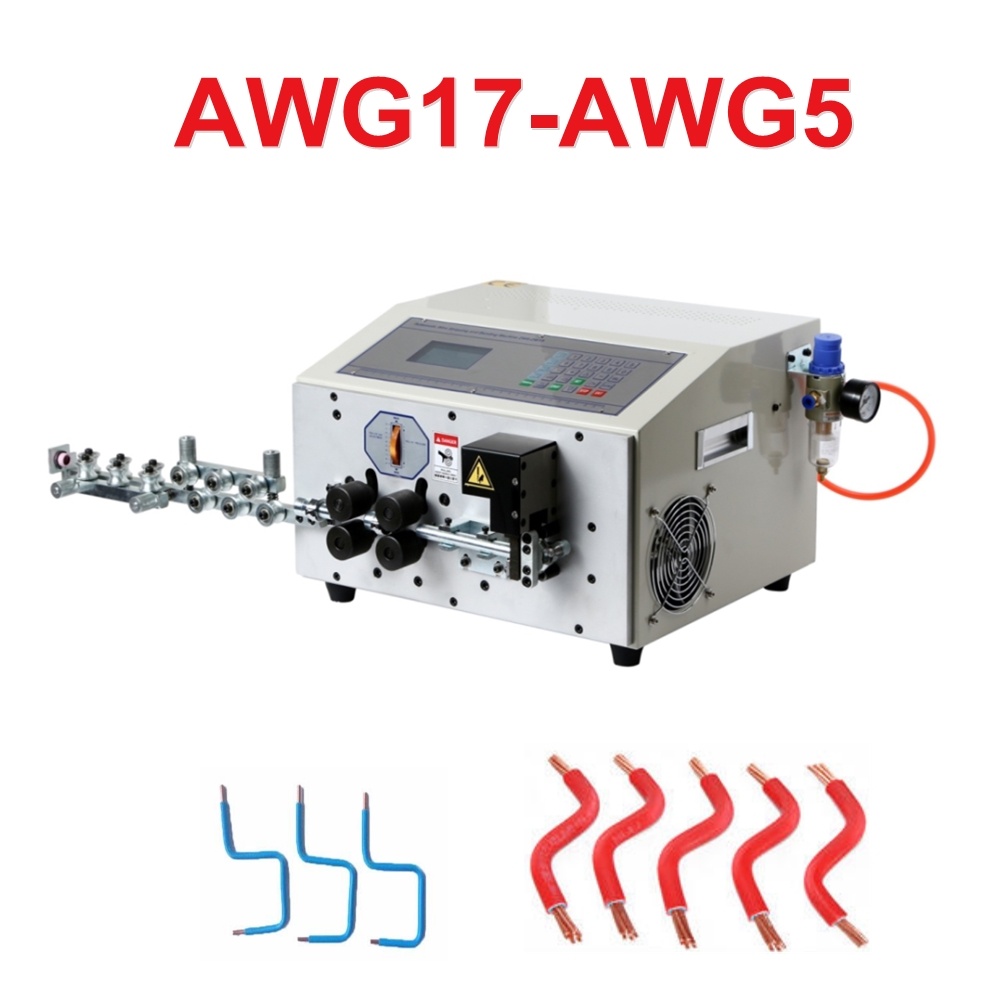

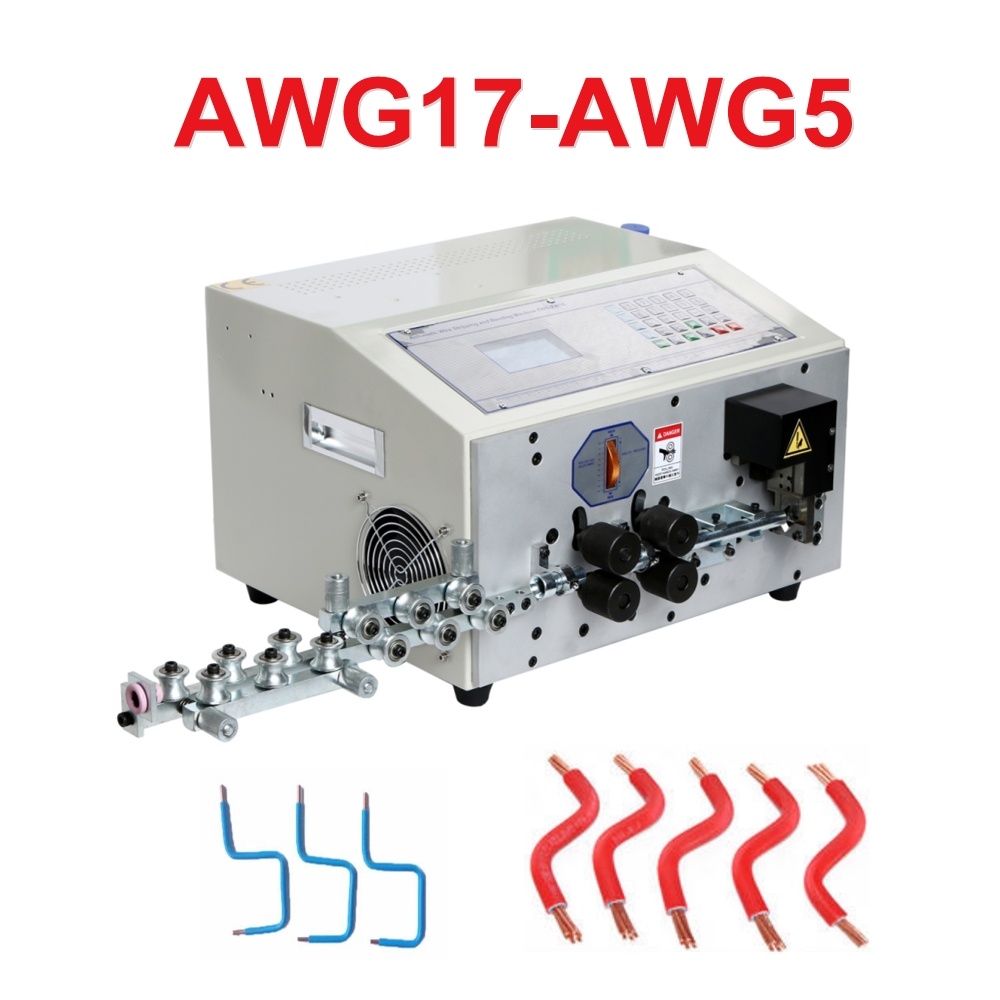

SWT508-ZW16 updated 4 rollers computer automatic wire stripping and bending machine for angle bender and customized bending type PVC Electrical Wire Bending Pipe hydraulic compatible for 1-16mm2 AWG17 to AWG5
RE:Due to belt is easy to worn down, so we change to metal wheels.(If need belt version can leave message below order.)
1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.
2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.
3. Crystal Protect case not included, if need please leave message to seller.
4. Wire collector not included, if need please leave message to seller.)

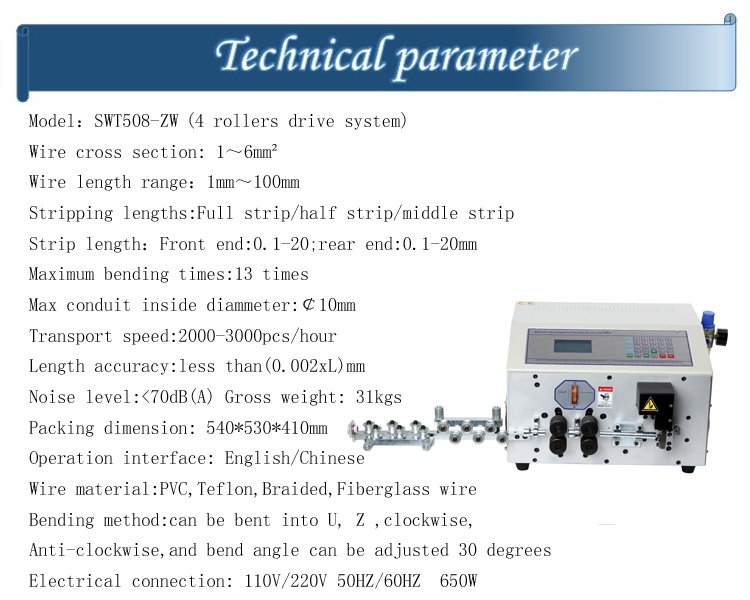

Specification
| Model | SWT508-ZW16 |
| Power | 650W |
| Wire cross section | 1～16mm² |
| Wire length range | 1mm～100mm |
| Stripping lengths | Full strip/half strip/middle strip |
| Strip length | Front end:0.1-20mm;rear end:0.1-20mm |
| Maximum bending times | 13 times |
| Max conduit inside diammeter | ￠10mm |
| Transport speed | 2000-3000pcs/hour |
| Length accuracy | less than(0.002xL)mm |
| Noise level | <70dB(A) |
| Electrical connection | 110V/220V 50HZ/60HZ 650W |
| Operation interface | English/Chinese |
| Wire material | PVC,Teflon,Braided,Fiberglass wire |

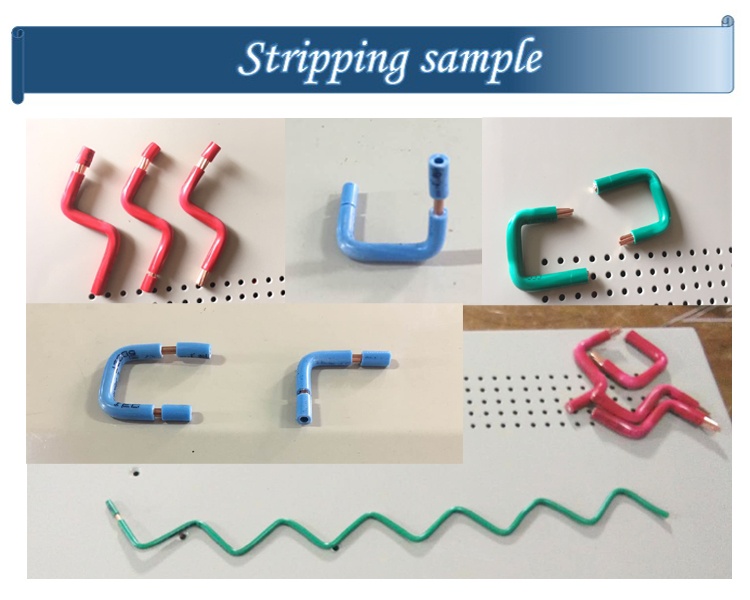

| Bending method | can be bent into U, Z ,clockwise, Anti-clockwise,and bend angle can be adjusted 30 degrees |
| Machine dimension | 420*390*280mm |
| Packing dimension | 540*530*410mm |
| Net Weight | 30kgs |
| Gross Weight | 31kgs |
| Adjusting Speed | 0 Slowest, 9 Fastest |
Thanks for your order!

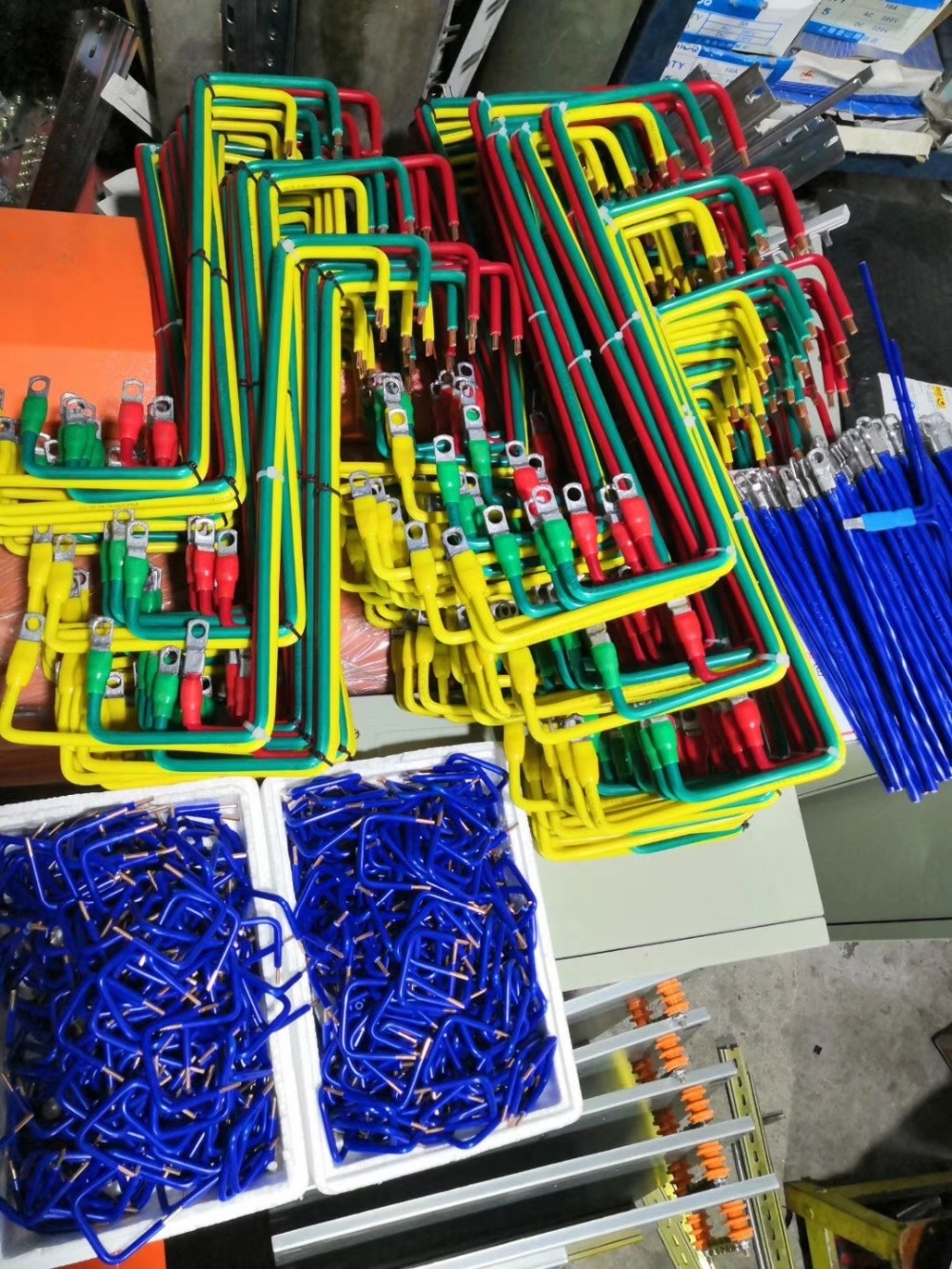

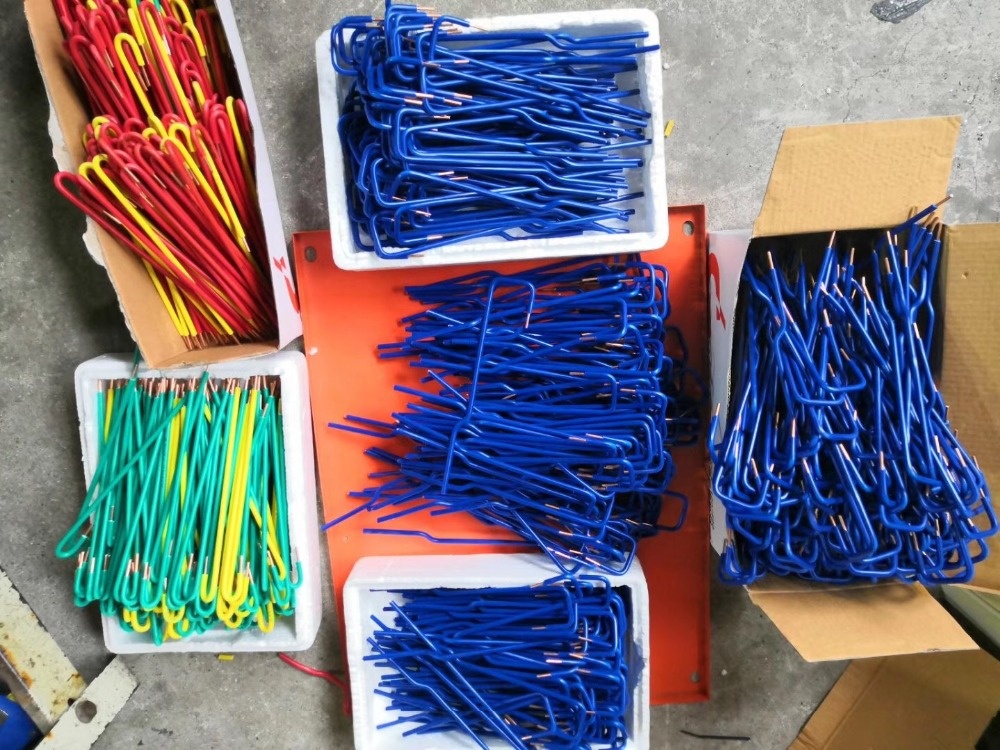

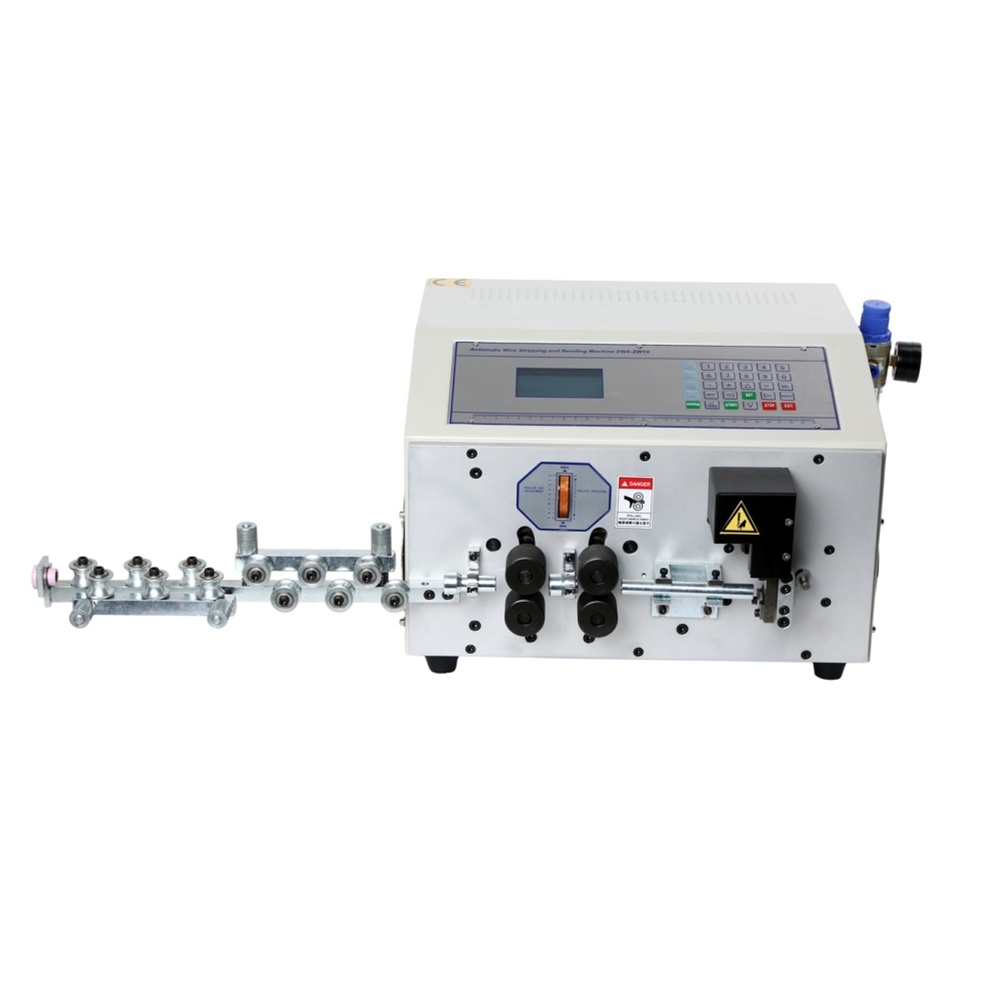

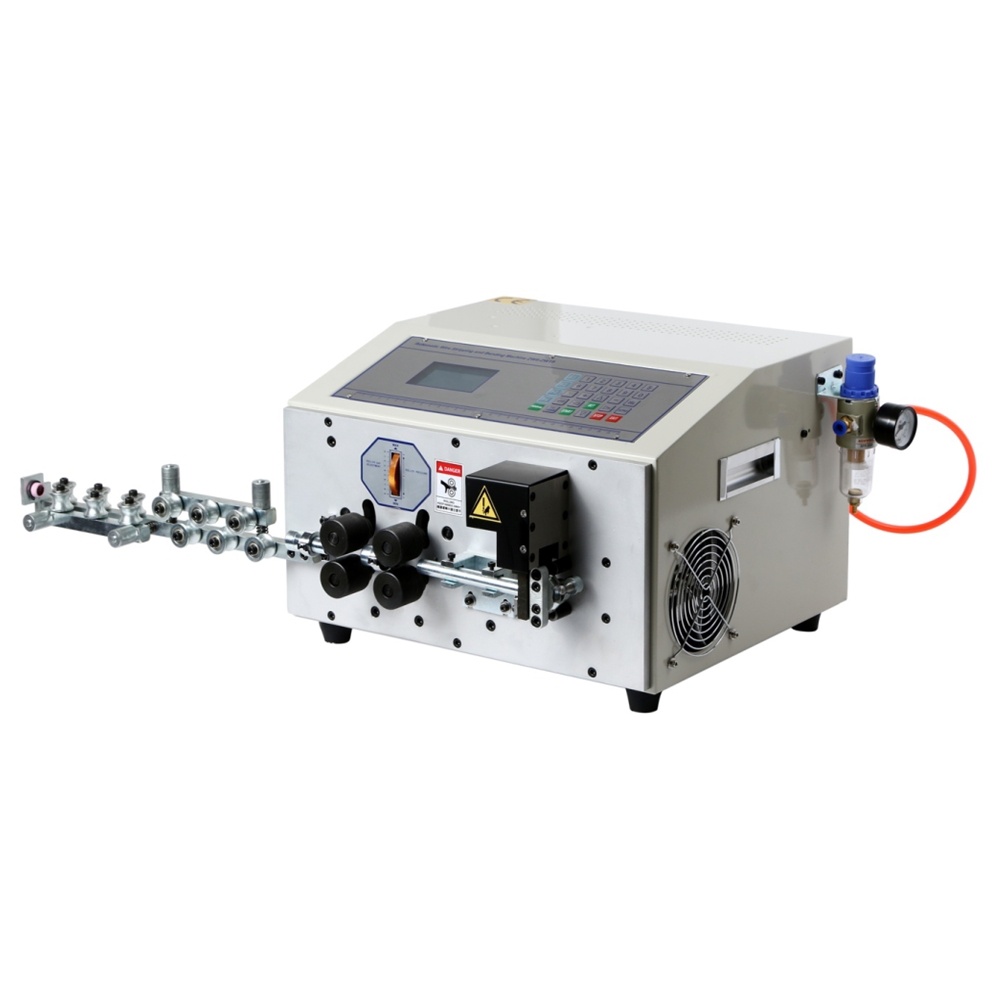

Product Pictures
