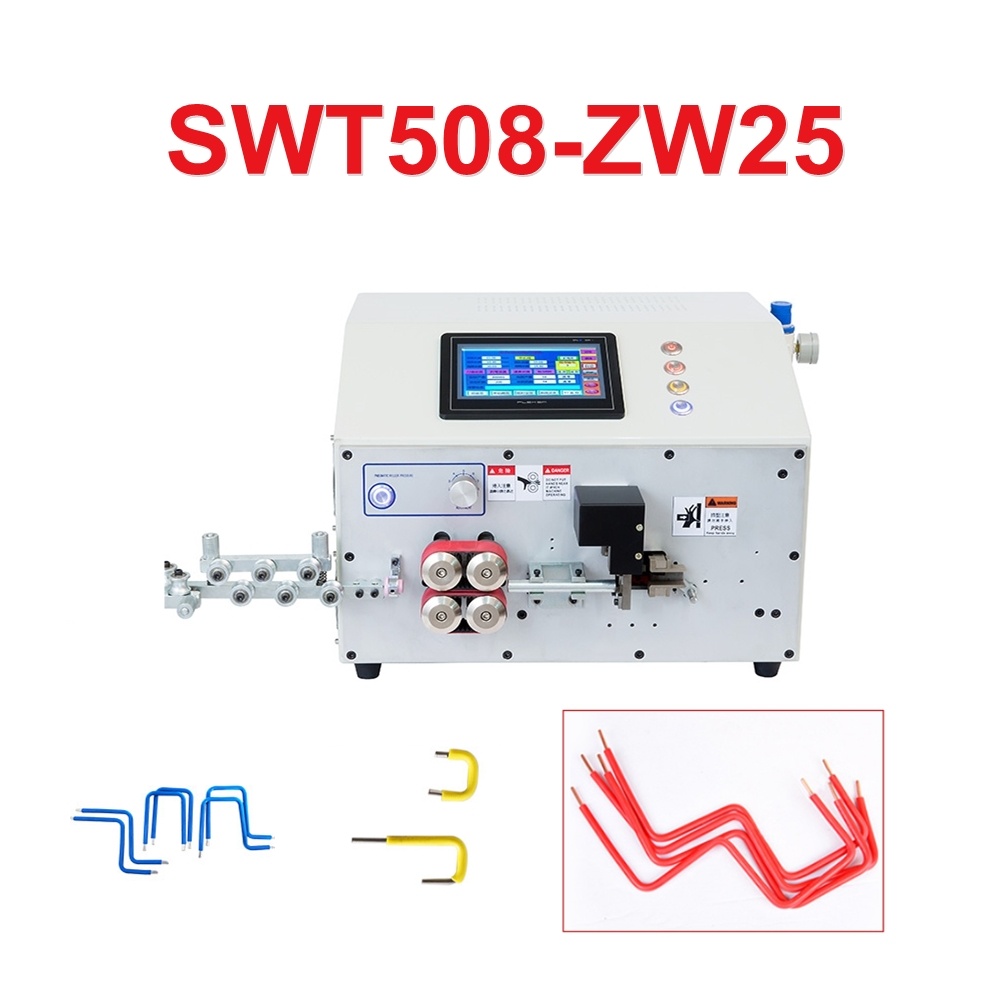

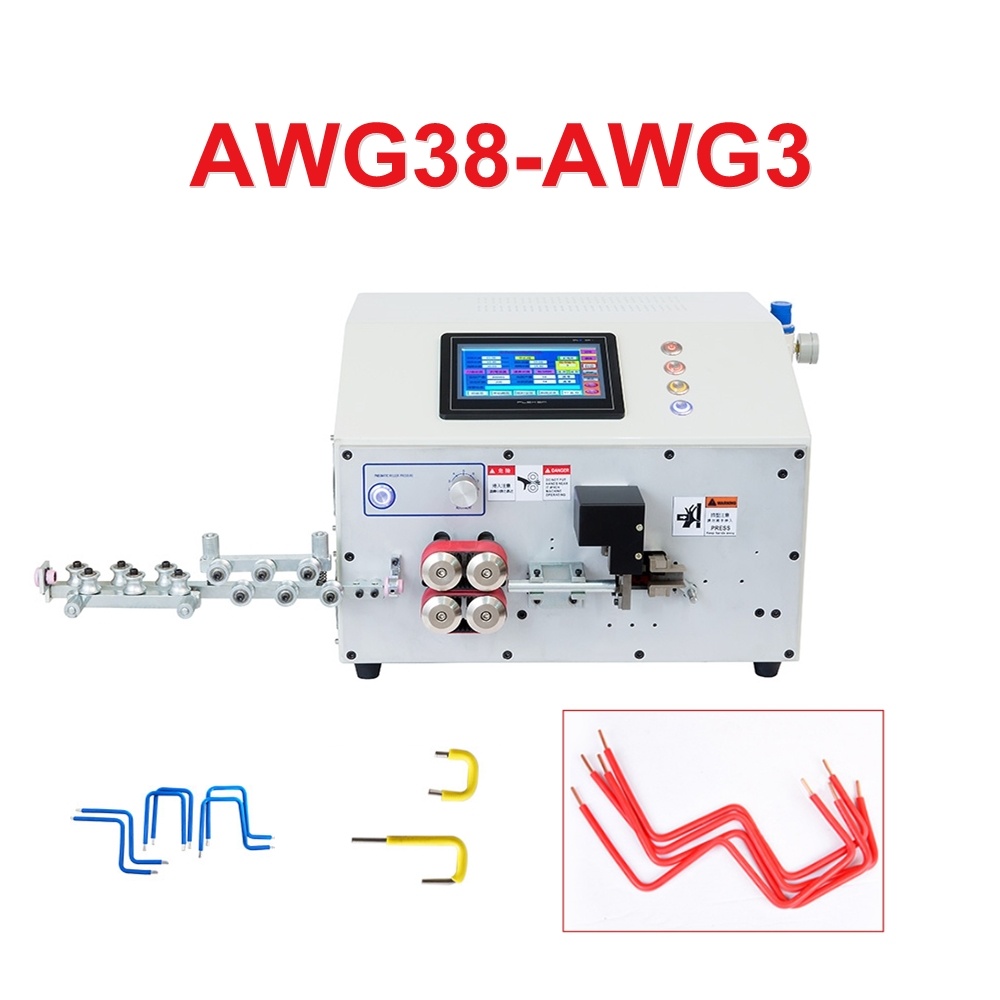

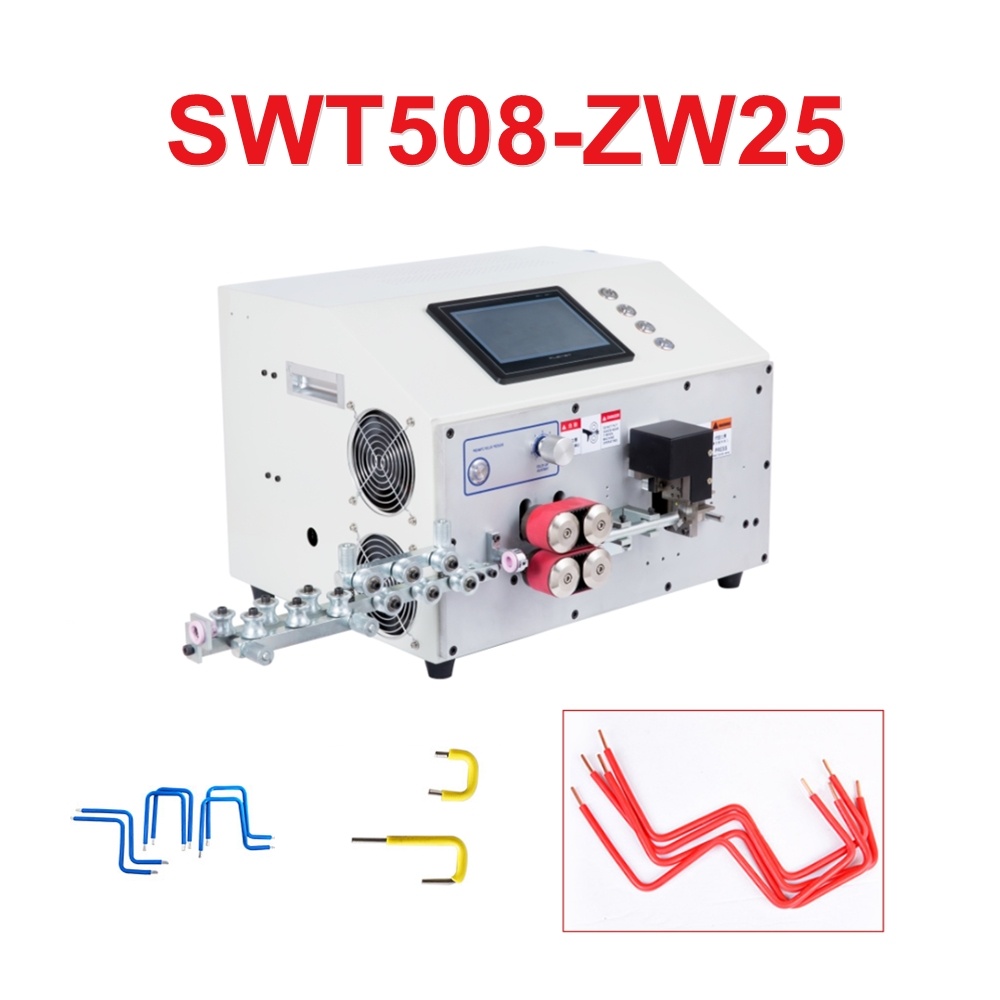

SWT508-ZW25 updated 7 inch touch screen double head computer automatic wire stripping and bending machine for angle bender and customized bending type PVC Electrical Wire Bending Pipe hydraulic compatible for AWG38 to AWG3
Reviews(0)
Product Detail
Product Tags
SWT508-ZW25 updated 7 inch touch screen double head computer automatic wire stripping and bending machine for angle bender and customized bending type PVC Electrical Wire Bending Pipe hydraulic compatible for AWG38 to AWG3

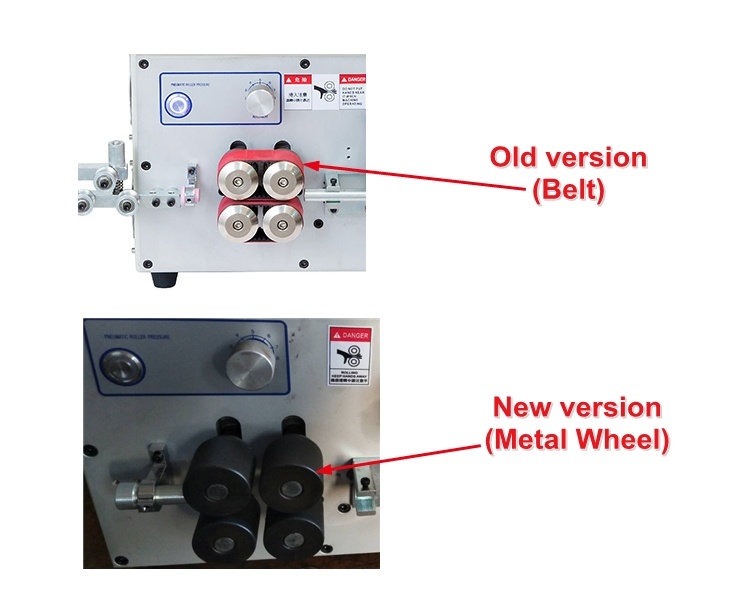

RE:Due to belt is easy to worn down,so we change to metal wheels.(If need belt version can leave message below order.)
1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.
2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.
3. Crystal Protect case not included, if need please leave message to seller.
4. Wire collector not included, if need please leave message to seller.)

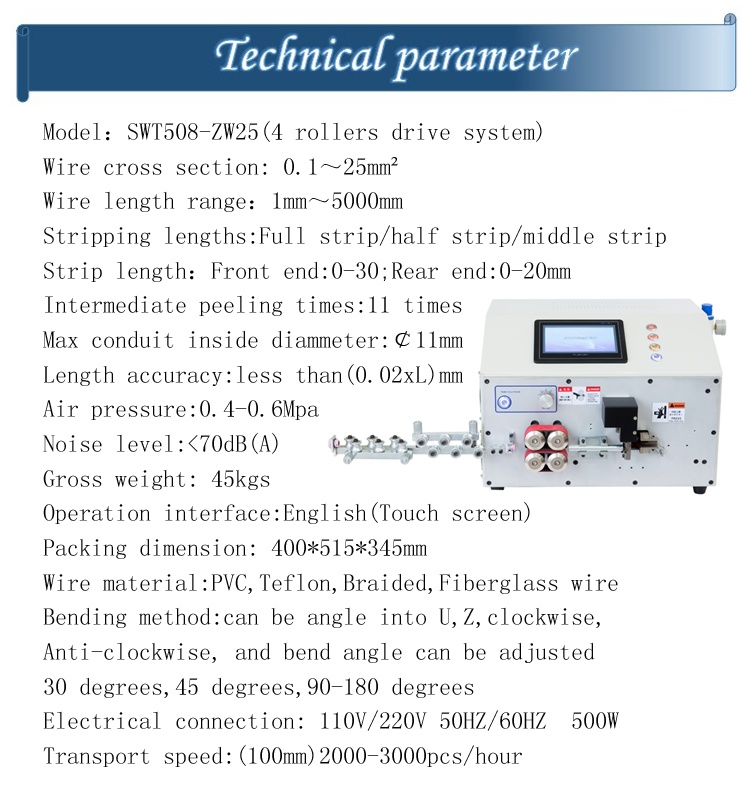

Specification
| Model | SWT508-ZW25 |
| Machine dimension | 400mm×515mm×345mm |
| Weight | 45KG |
| Power | 500W |
| Electrical connection | 220V or 110V 50/60HZ |
| Display mode | Chinese and English operation interfaces can be switched to each other (7-inch touch screen) |
| Pressure | 0.4-0.6Mpa |
| Wire cross section | 0.1-25mm² |

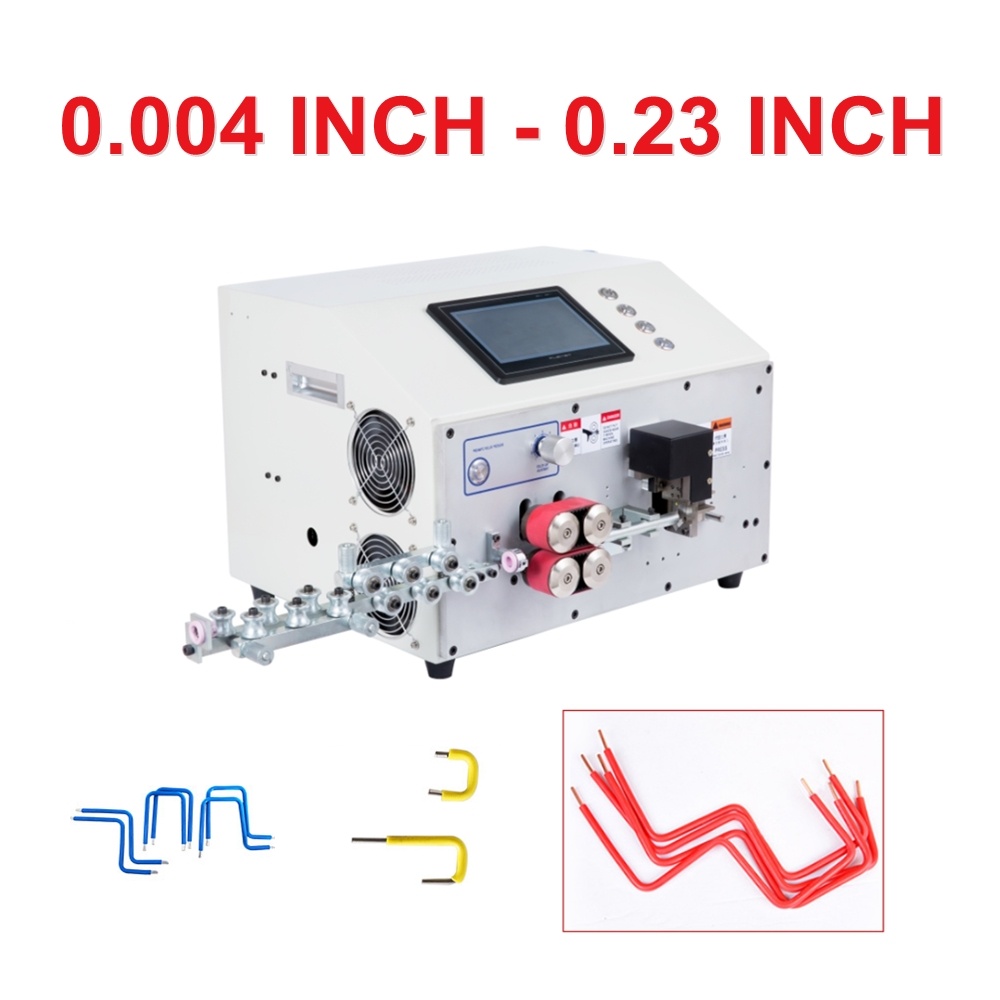

| Wire application | AWG3-AWG38 (0.004 inch – 0.23 inch) |
| Max conduit inside diameter | ￠11 |
| Length accuracy | ±0.2mm |
| Wire length range | 5m（MAX） |
| Stripping length | Front end（0-30mm）rear end（0-20mm） |

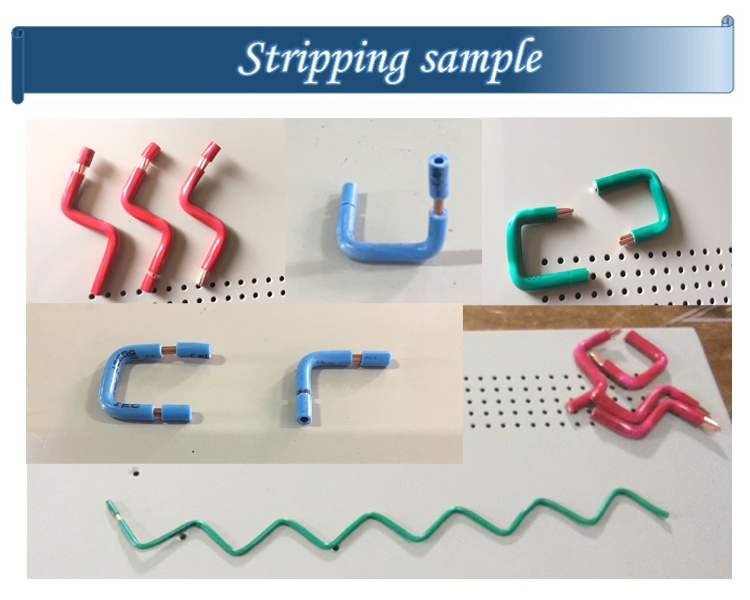

| Bending method | can be bent into U, Z ,clockwise, Anti-clockwise,and bend angle can be adjusted 30 degrees |
| Transport speed | 100mm 2000-3000pc/hour |
