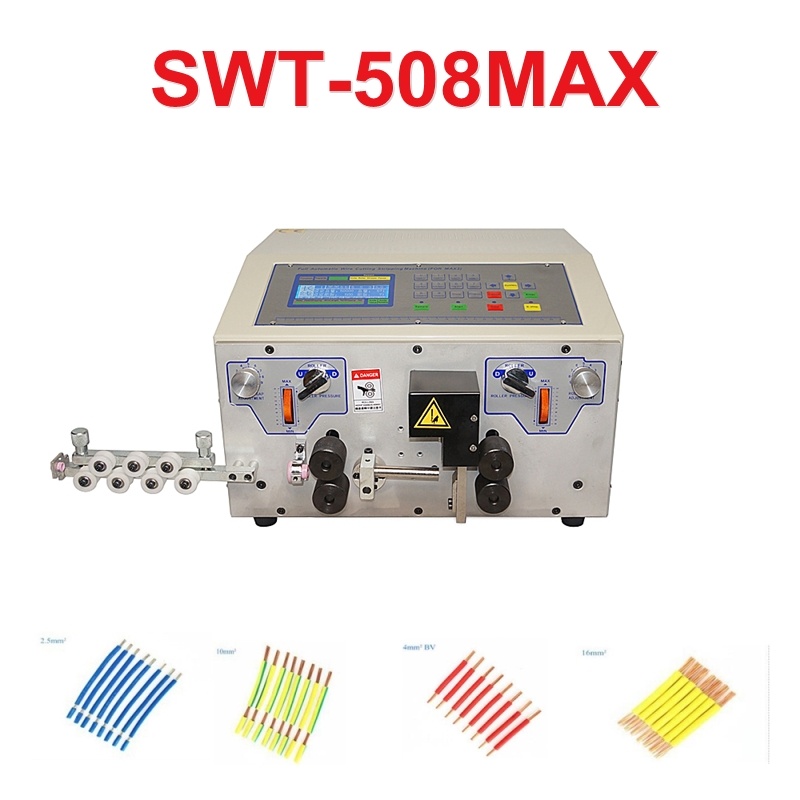

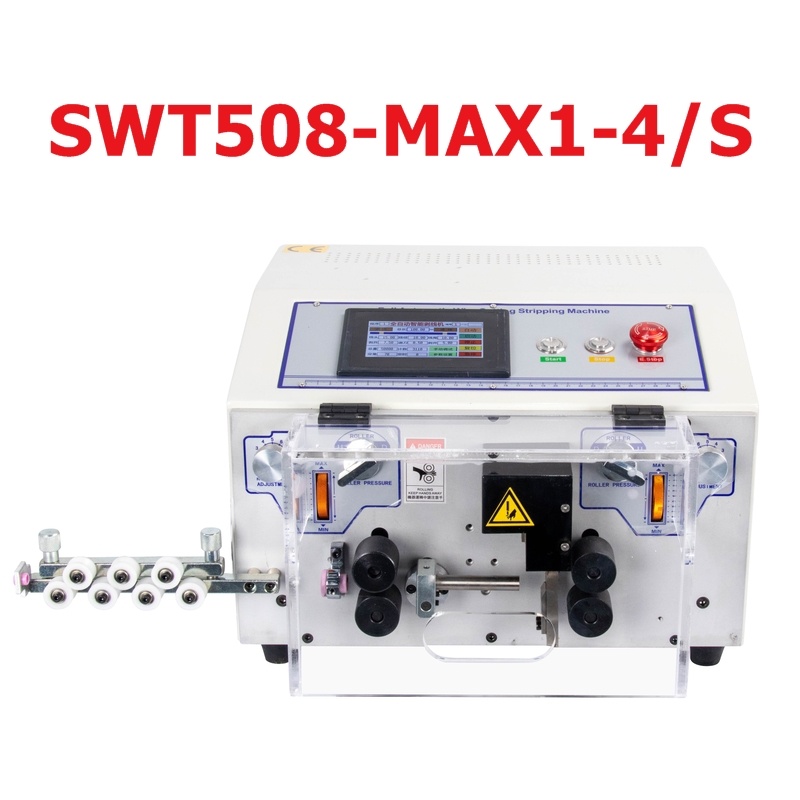

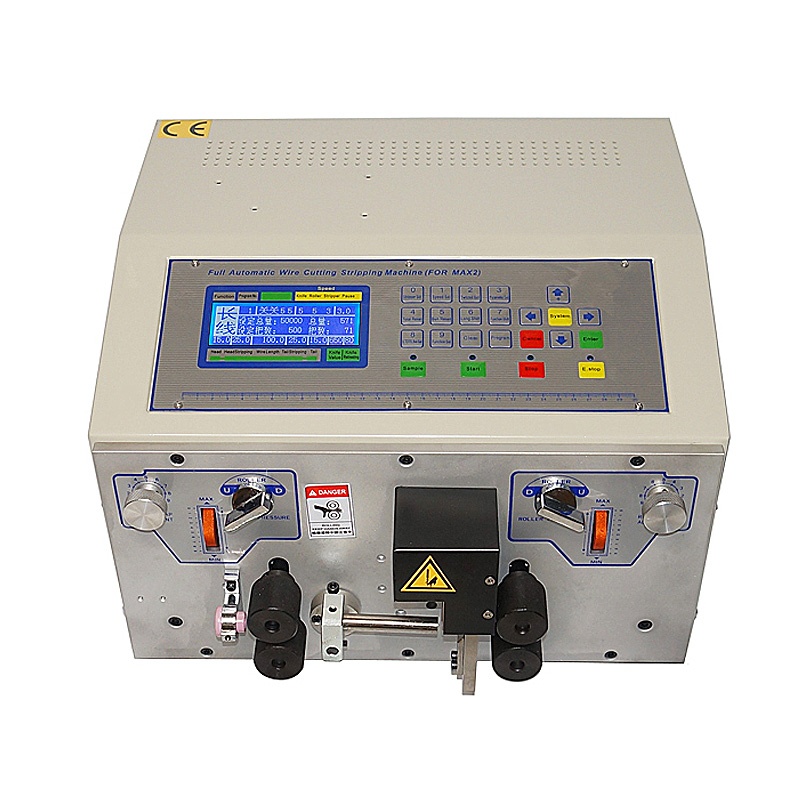

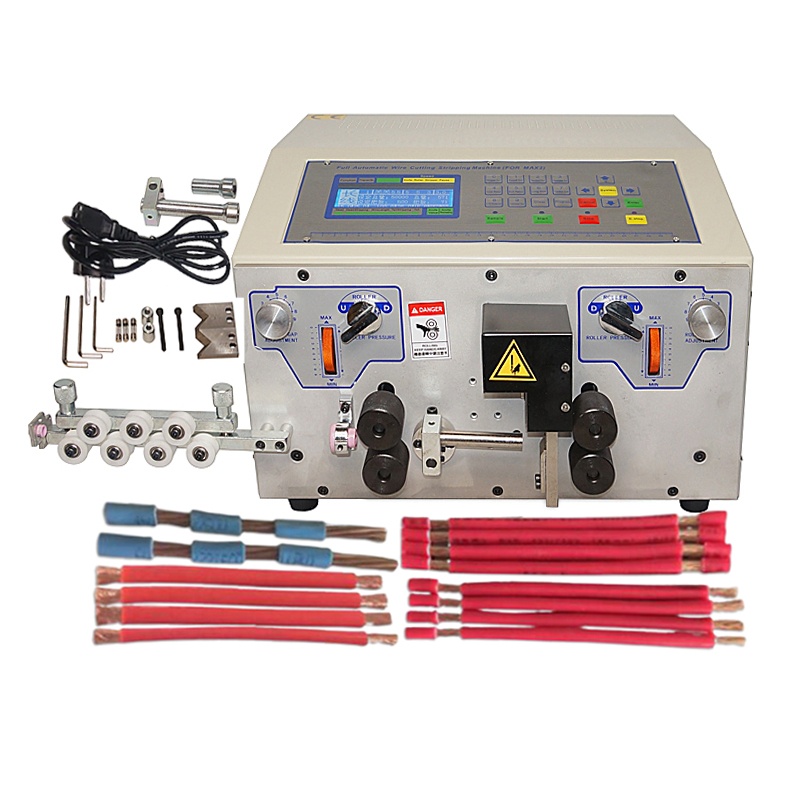

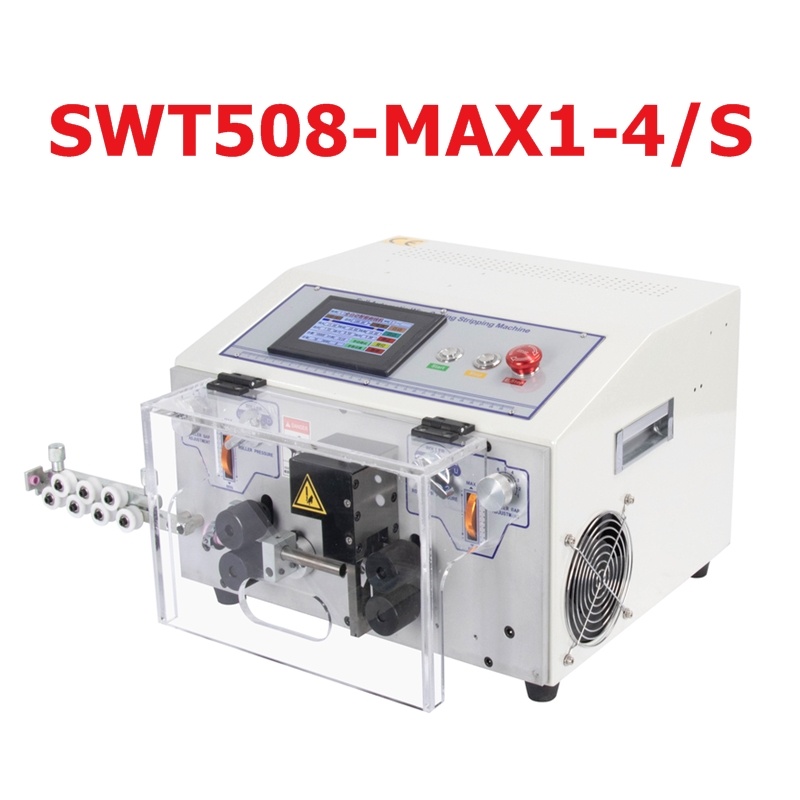

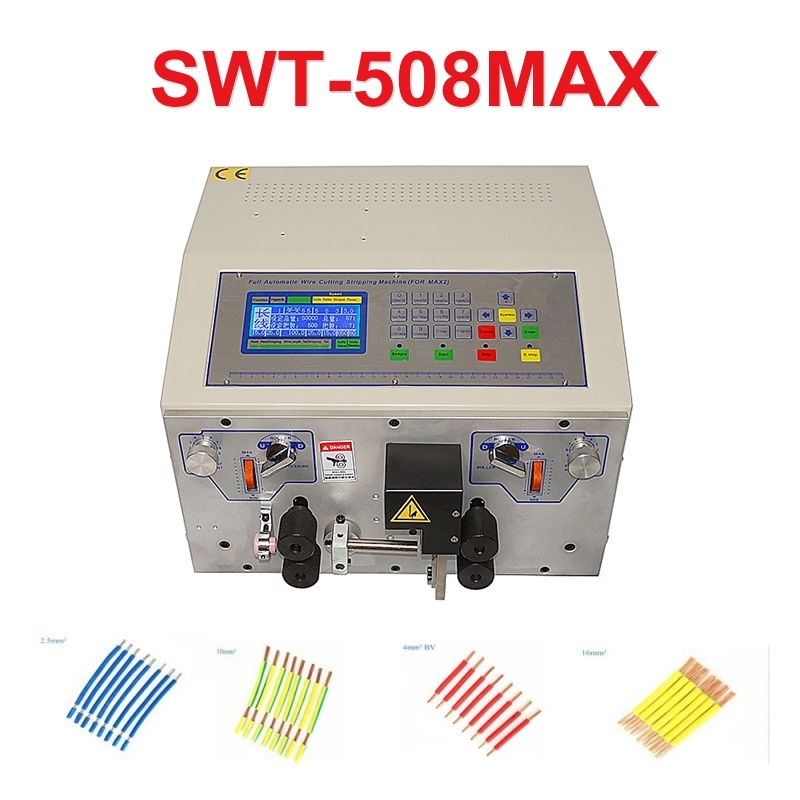

SWT508MAX1-4/4S Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.2 to 16mm2 500W 4 wheels drive Optional Touch Screen Control
Reviews(0)
Product Detail
Product Tags

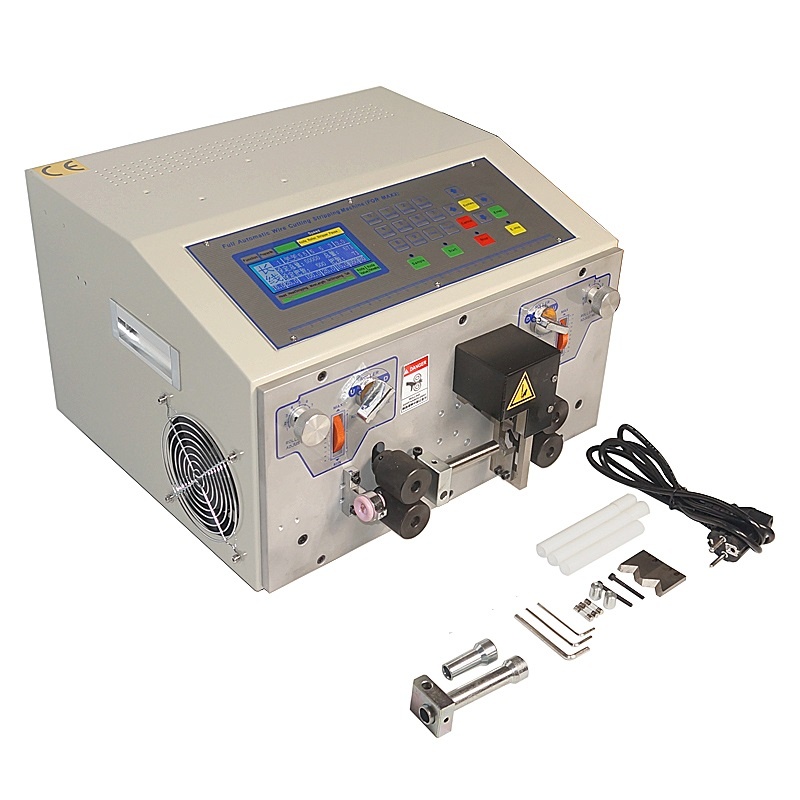

SWT508MAX1-4/4S Peeling Stripping Cutting Machine for Computer automatic wire strip stripping machine 0.2 to 16mm2 500W 4 wheels drive Optional Touch Screen Control
(RE:
1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

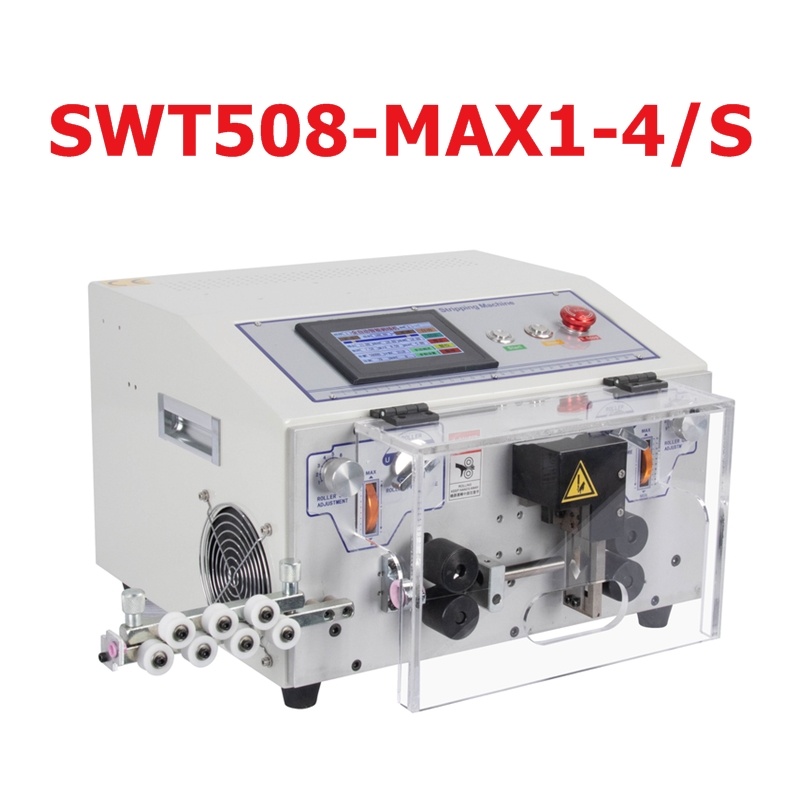

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.
3. Crystal Protect case not included, if need please leave message to seller.
4. Wire collector not included, if need please leave message to seller.)
Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment. Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.
Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc.

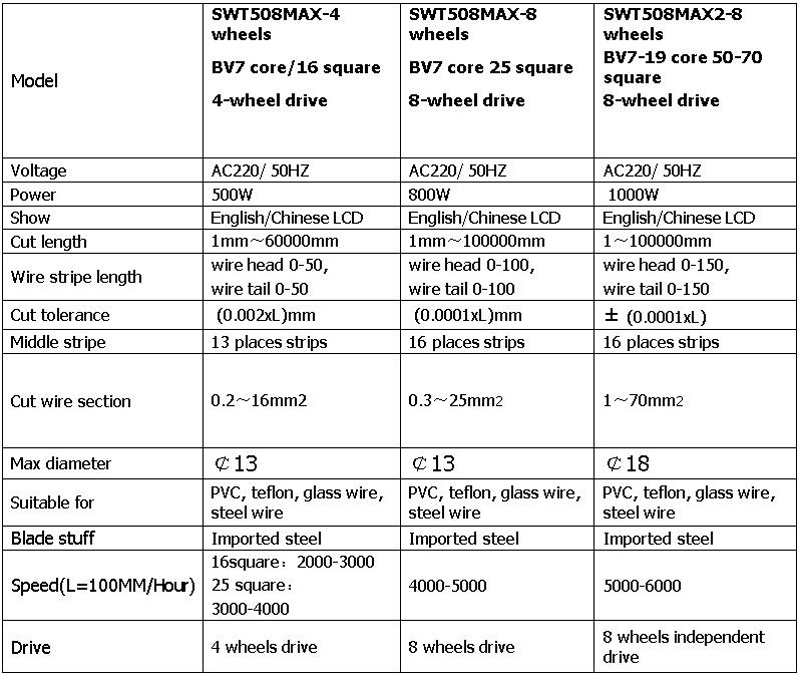

| Model | SWT508MAX1-4/4S wheels | SWT508MAX-8 wheels | SWT508MAX2-8 wheels | |
| BV7 core/16 square | BV7 core 25 square | BV7-19 core 50-70 square | ||
| 4-wheel drive | 8-wheel drive | 8-wheel drive | ||
| Voltage | AC220/ 50HZ | AC220/ 50HZ | AC220/ 50HZ | |
| Power | 500W | 800W | 1000W | |
| Show | English/Chinese LCD | English/Chinese LCD | English/Chinese LCD | |
| Cut length | 1mm～60000mm | 1mm～100000mm | 1～100000mm | |
| Wire stripe length | wire head 0-50, | wire head 0-100, | wire head 0-150, | |
| wire tail 0-50 | wire tail 0-100 | wire tail 0-150 | ||
| Cut tolerance | (0.002xL)mm | (0.0001xL)mm | ± (0.0001xL) | |
| Middle stripe | 13 places strips | 16 places strips | 16 places strips | |
| Cut wire section | 0.2～16mm2 | 0.3～25mm2 | 1～70mm2 | |
| Max diameter | ￠13 | ￠13 | ￠18 | |
| Suitable for | PVC, teflon, glass wire, steel wire | PVC, teflon, glass wire, steel wire | PVC, teflon, glass wire, steel wire | |
| Blade stuff | Imported steel | Imported steel | Imported steel | |
| Speed(L=100MM/Hour) | 16square：2000-3000 | 4000-5000 | 5000-6000 | |
| 25 square： | ||||
| 3000-4000 | ||||
| Drive | 4 wheels drive | 8 wheels drive | 8 wheels independent drive |

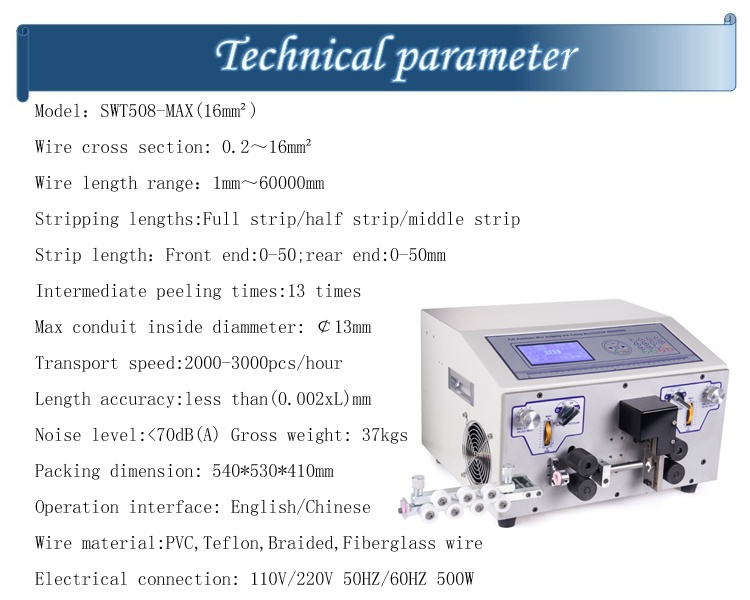

Technical parameters:
| Model | SWT508MAX1-4/4S |
| Voltage | AC 110V/220V/50/60 Hz |
| Dimensions | 390x350x255 |
| Display mode | LCD liquid crystal display in Chinese and English interface |
| Weight | 32(KG) |
| Power | 500(W) |
| Cutting length | 1-59999mm |
| Cutring tolerance | (0.2±0.002×L)mm |
| Cutting tolerance | correction |
| Stripping length | head 0-50mm, end 0-50mm |
| Intermediate stripping | thirteen place strips |
| Wire cross section | 0.2～16mm2 |
| Maximum diameter of tube | ￠13mm |
| Suitable wire stripping | PVC/PTFE/silicone cable/fiber glass wire |
| Blade material | rigid steel |
| Wire speed (pcs/h) | 3000-4000 |
| Drive | four wheel drive |
Thanks for your order!

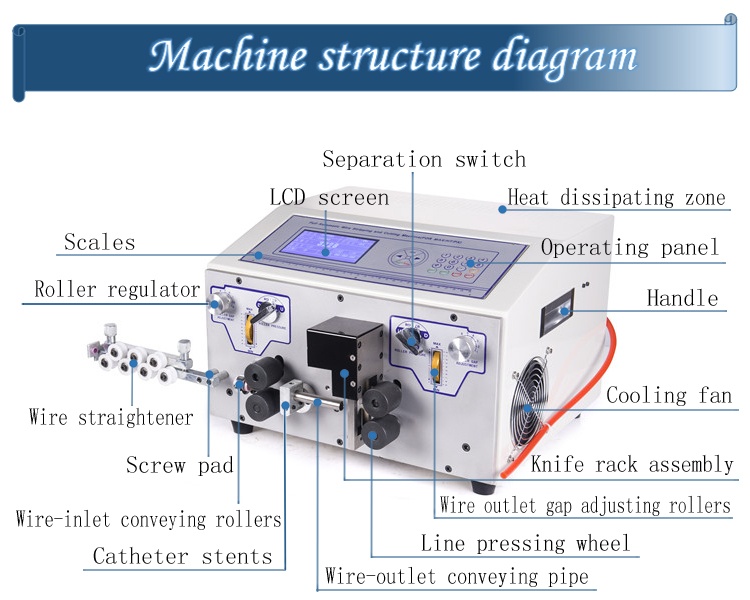

Product Pictures
