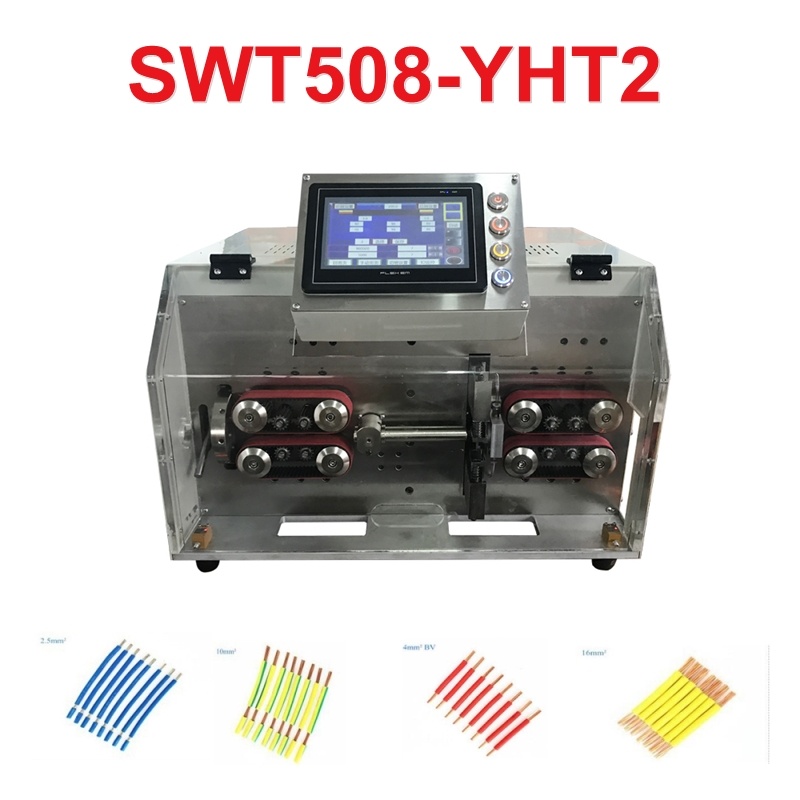

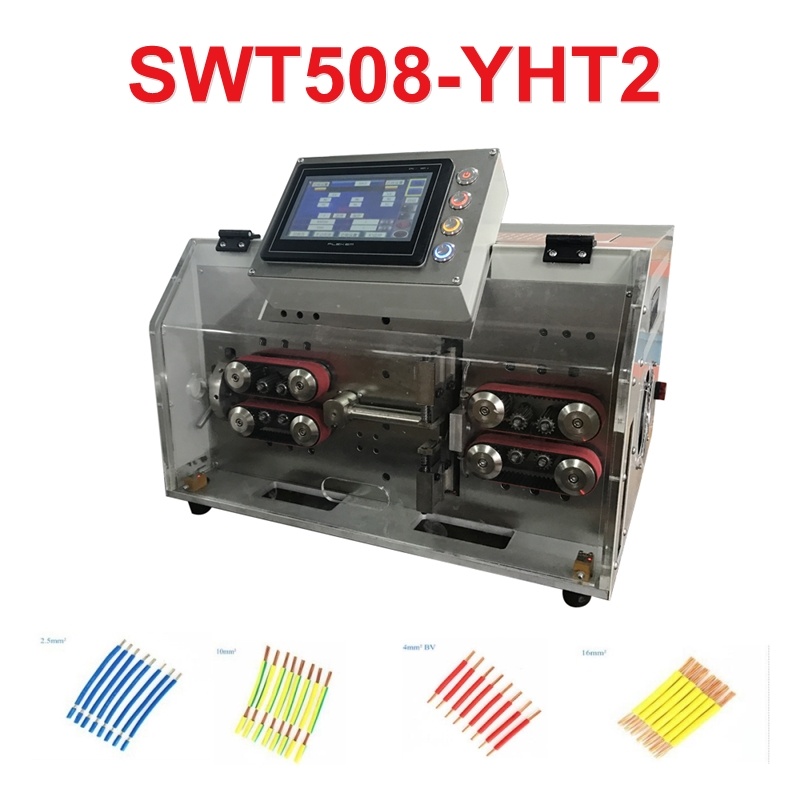

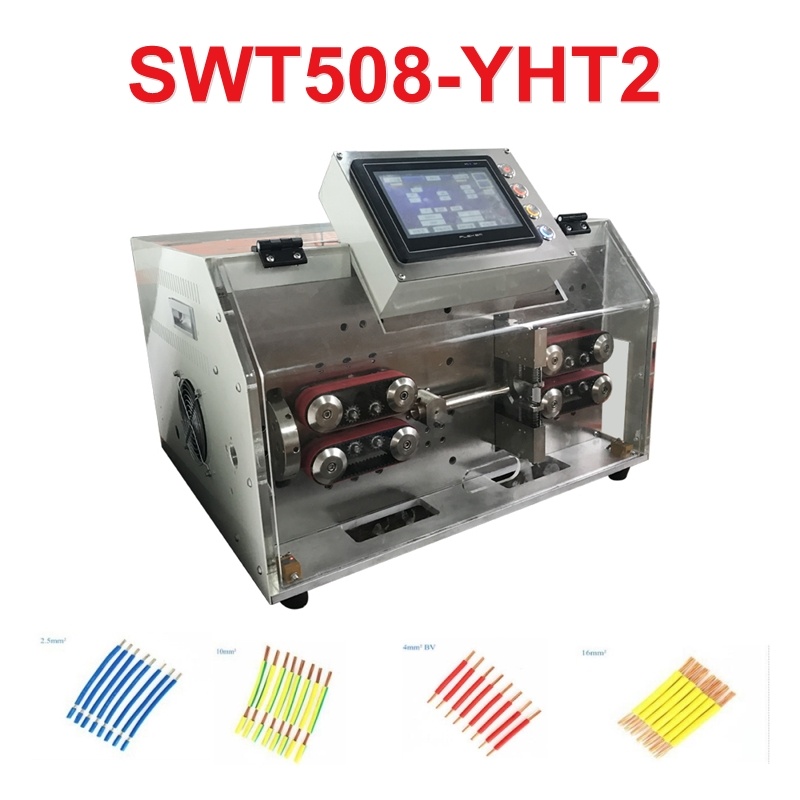

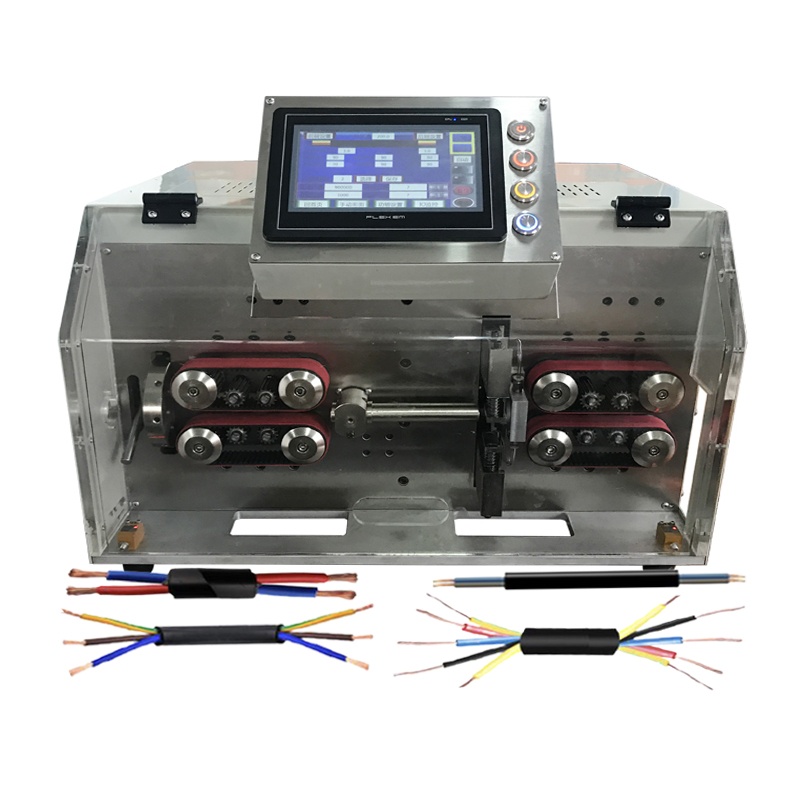

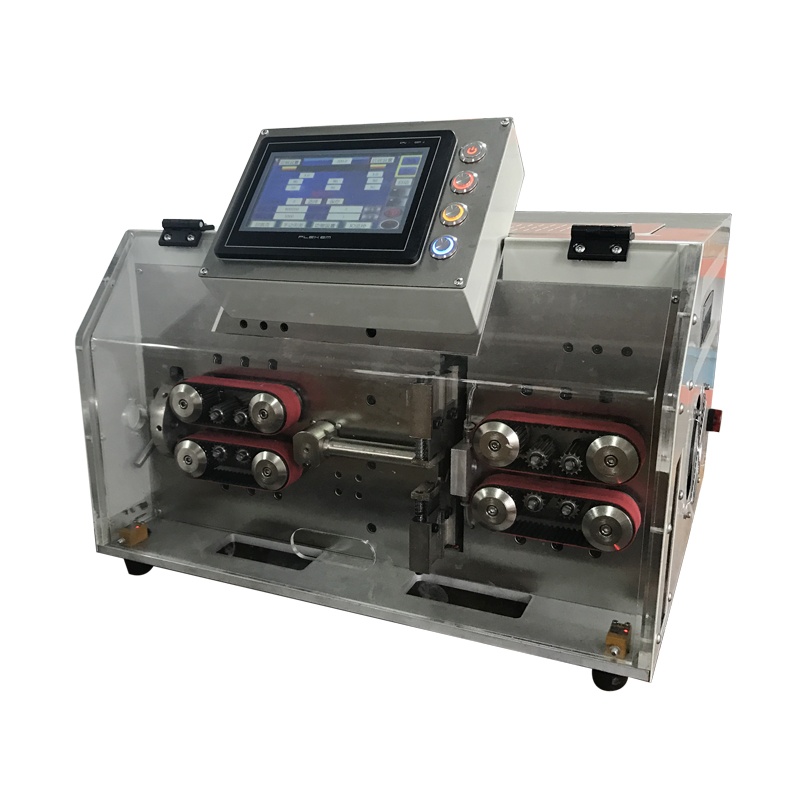

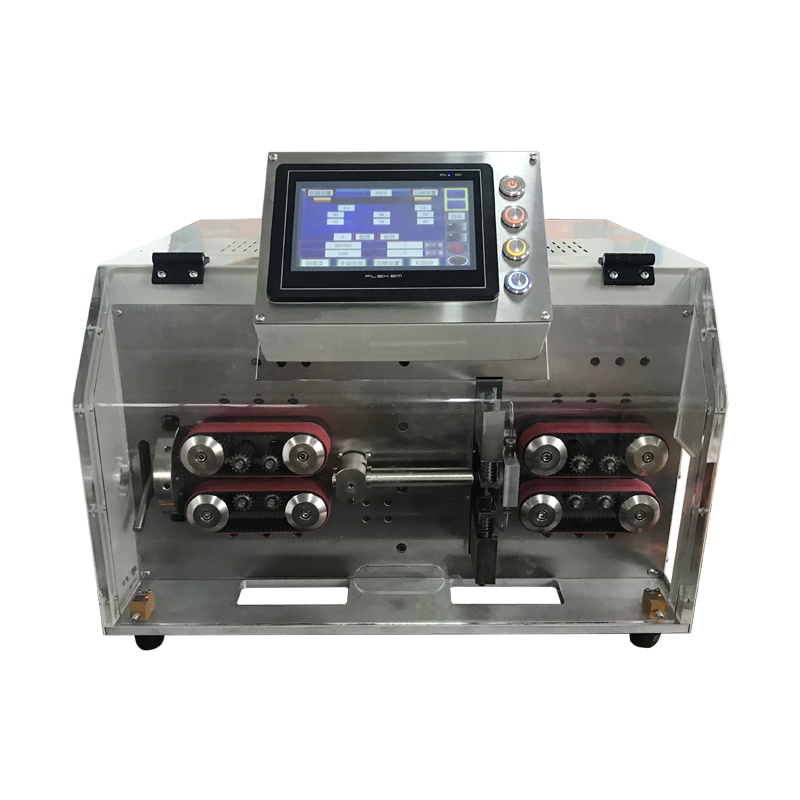

Touch screen SWT508 YHT2 Peeling Stripping Cutting Machine Computer automatic wire strip stripping for 3-13mm double round sheath line stripping 850W 220V 110V
item ID: 62844
Reviews(0)
Reviews(0)
Product Detail
Product Tags
Touch screen SWT508 YHT2 Peeling Stripping Cutting Machine Computer automatic wire strip stripping for 3-13mm double round sheath line stripping 850W 220V 110V
(RE:

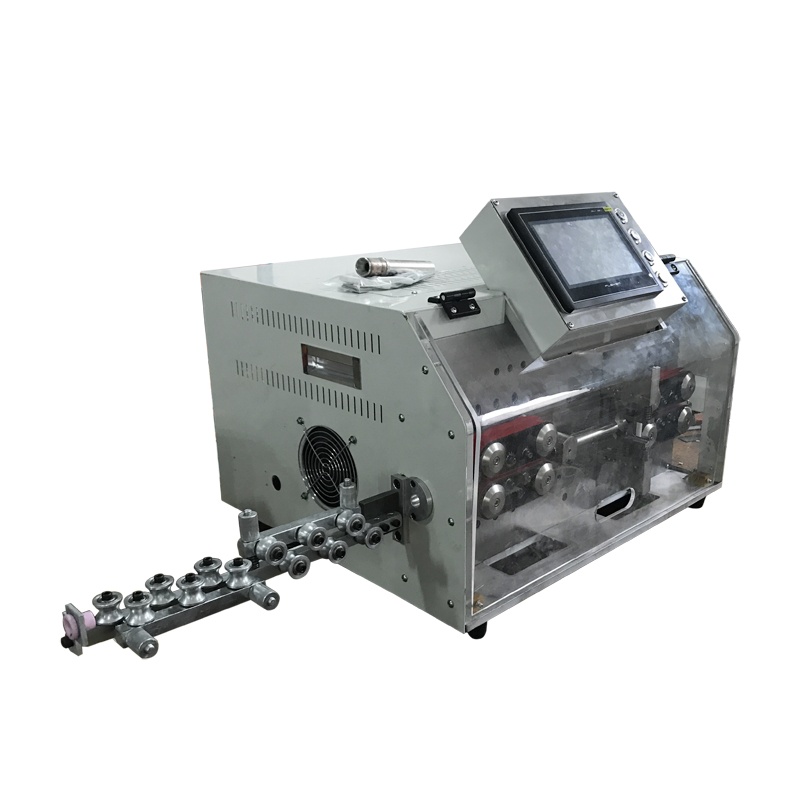

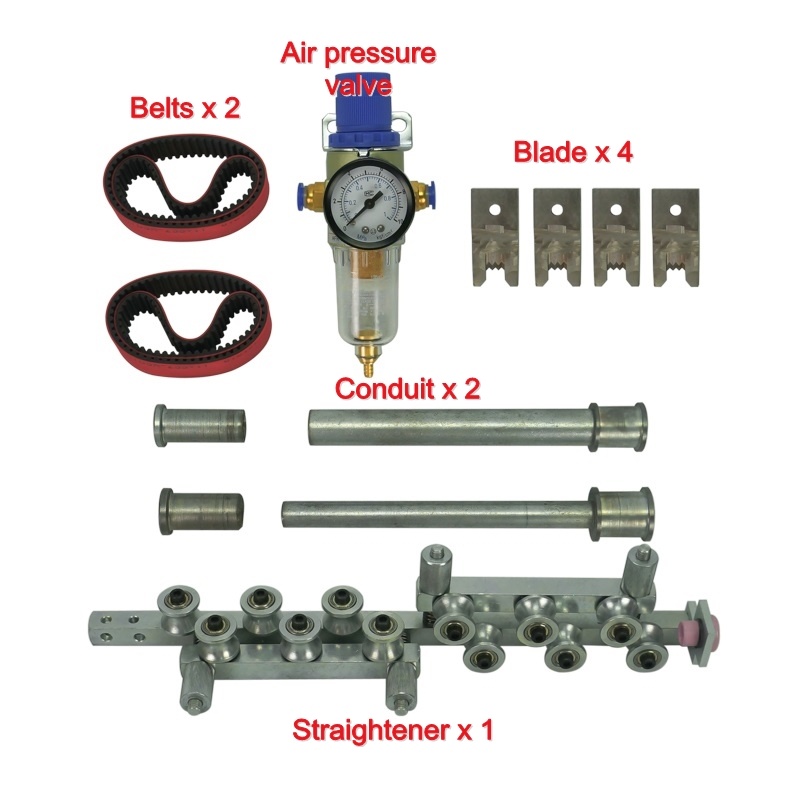

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.
2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.
3. Crystal Protect case not included, if need please leave message to seller.
4. Wire collector not included, if need please leave message to seller.)

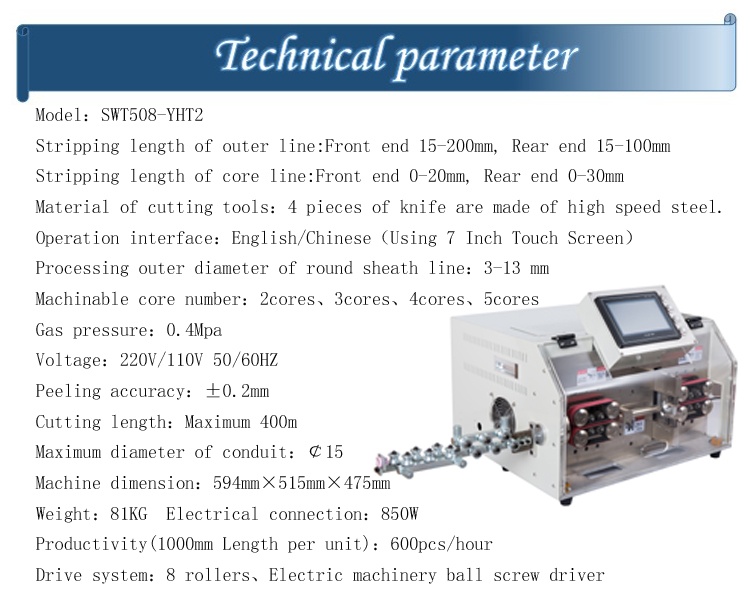

Technical parameters:
| Model | SWT508 – YHT2 |
| Dimensions | 700mm x 660mm x 430mm |
| Weight | 81KG |
| Power | 850W |
| Power supply | 220V/110V 50/60hz |

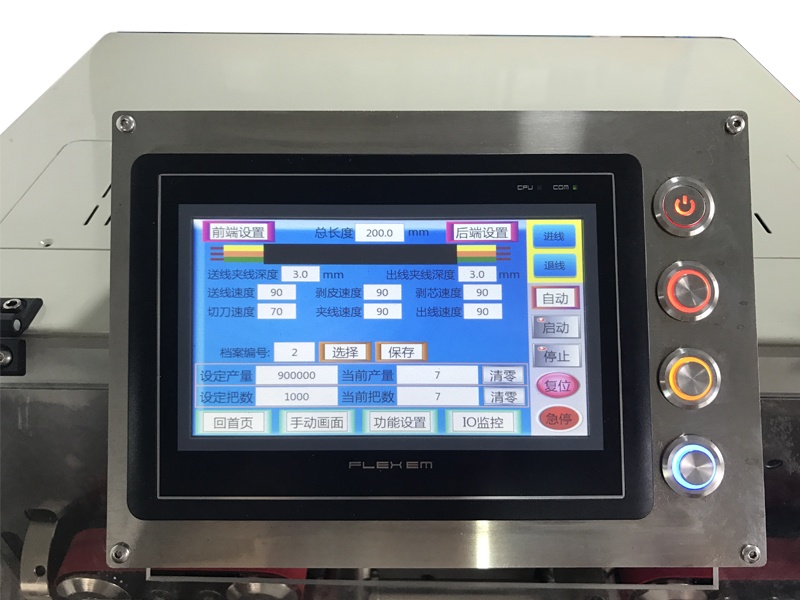

| Display mode | the operation interface in Chinese and English can be switched between each other (7-inch touch screen) |
| Processing outer diameter of round sheath line | 3-13 mm |
| The number of cores that can be processed | 2 cores, 3 cores, 4 cores and 5 cores |
| Pressure | 0.3-0.6 Mpa |
| Max diameter | ￠15 |
| Peeling accuracy | + / – 0.2mm |
| Cut length | 400m maximum |
| Exfoliation length | head stripping (15-200mm) tail stripping (15-100mm) |
| Striping length | 0-20mm for the head and 3-30mm for the tail |
| Material of blade | 4 pieces are made of imported high – speed steel |
| The wire stripping speed is 1000mm in length | 600 pieces per hour |

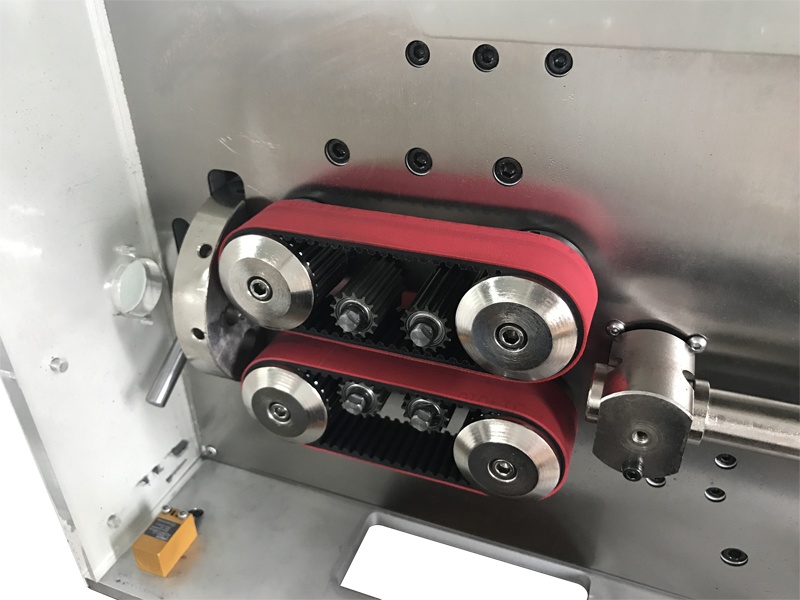

| Driving mode | 8 wheel drive,8 rollers, motor ball screw drive |
| Weight | 85KG |
Thanks for your order!
Product Pictures
USD$266
