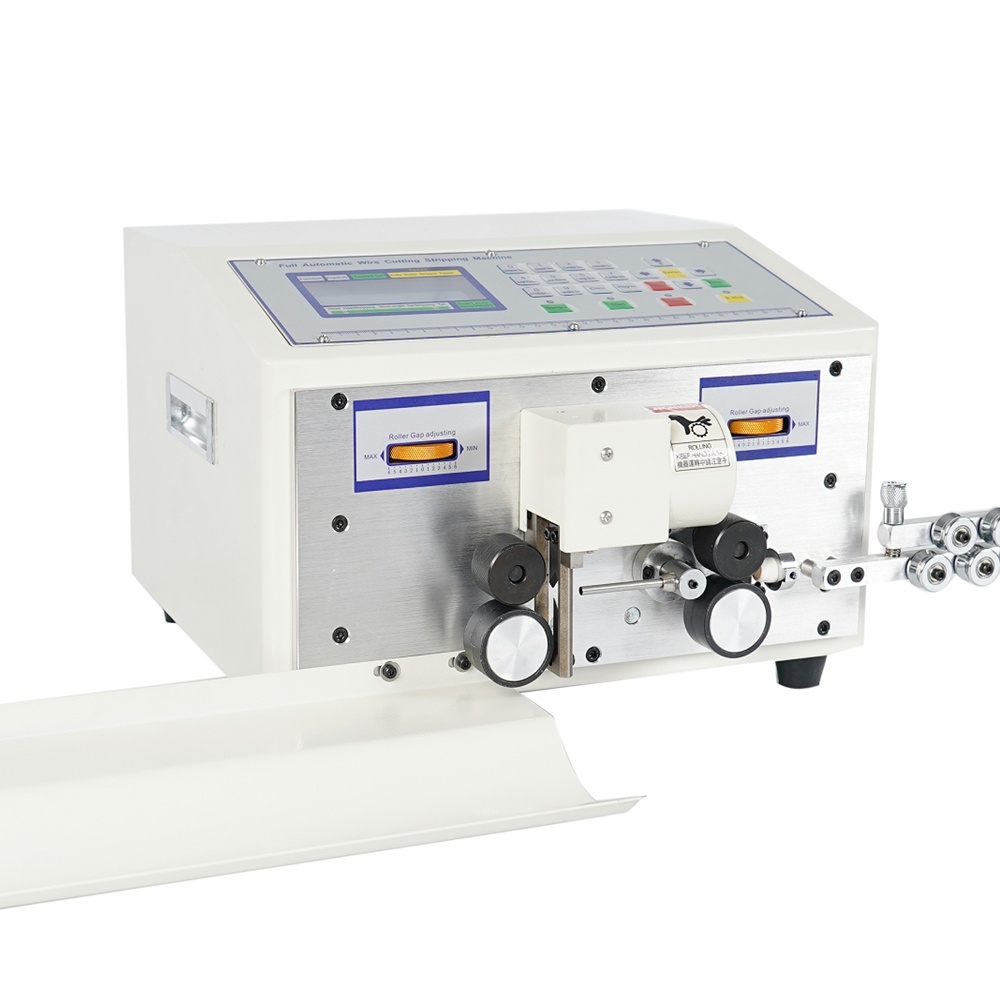

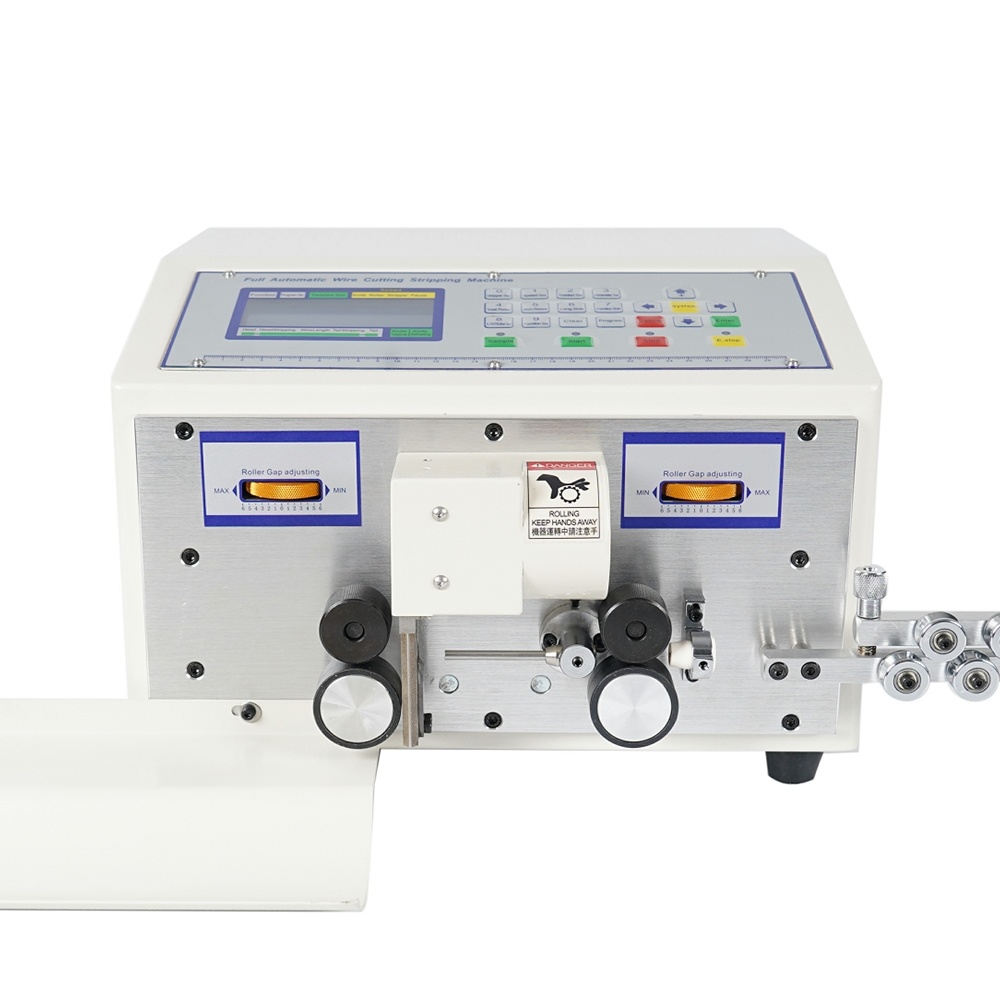

Upgraded SWT-608-CN 2-wheel Drives Wire Stripper Electric Peeling Stripping Cutting Machine For Computer Strip Wire 0.1mm-2.5mm² 220V 110V

(RE:

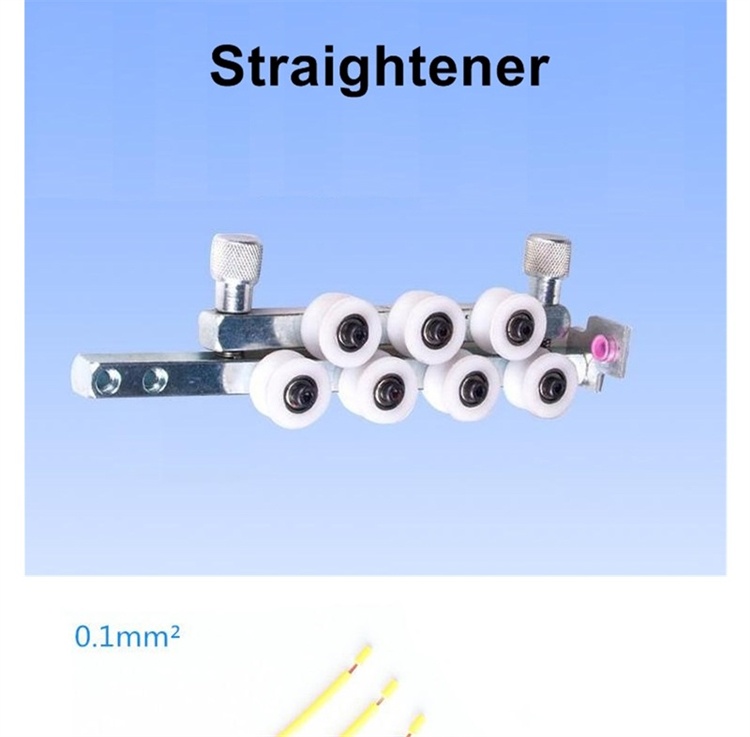

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 / MAX1-4 / MAX1-6 / MAX1-8 / HT2 / YHT3 / YHT4 / HT2/6S above models with Wire Cable Straightener only, other models need to buy extra.

2.Such as ES, SDS, DB2S, JES, JE2S, MAX1/4S, HT2S are touch screen panel models.

3. Crystal Protect case not included, need to buy extraly.

4. Wire collector free gift now.(Before need to buy extraly.)

Options:

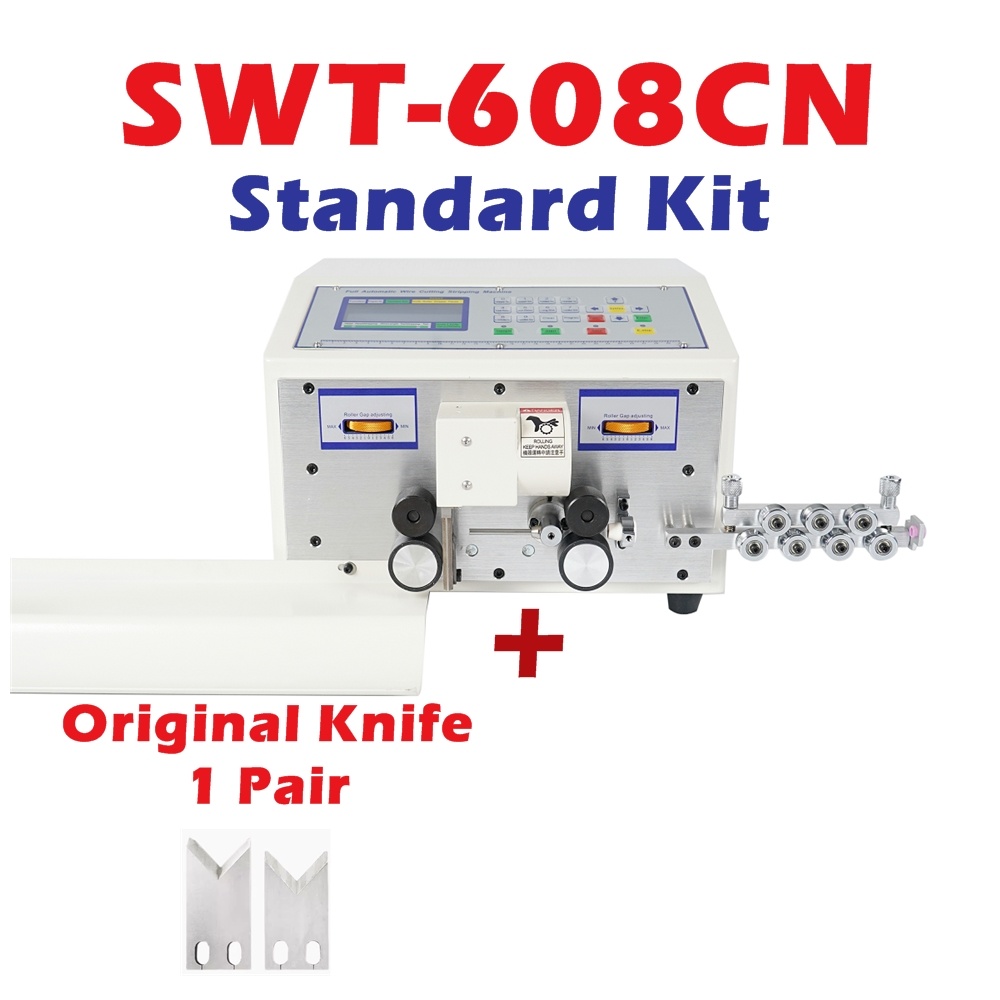

1. SWT-608-CN Standard Kit
2. SWT-608-CN Standard Kit + 1 Pair More Knife

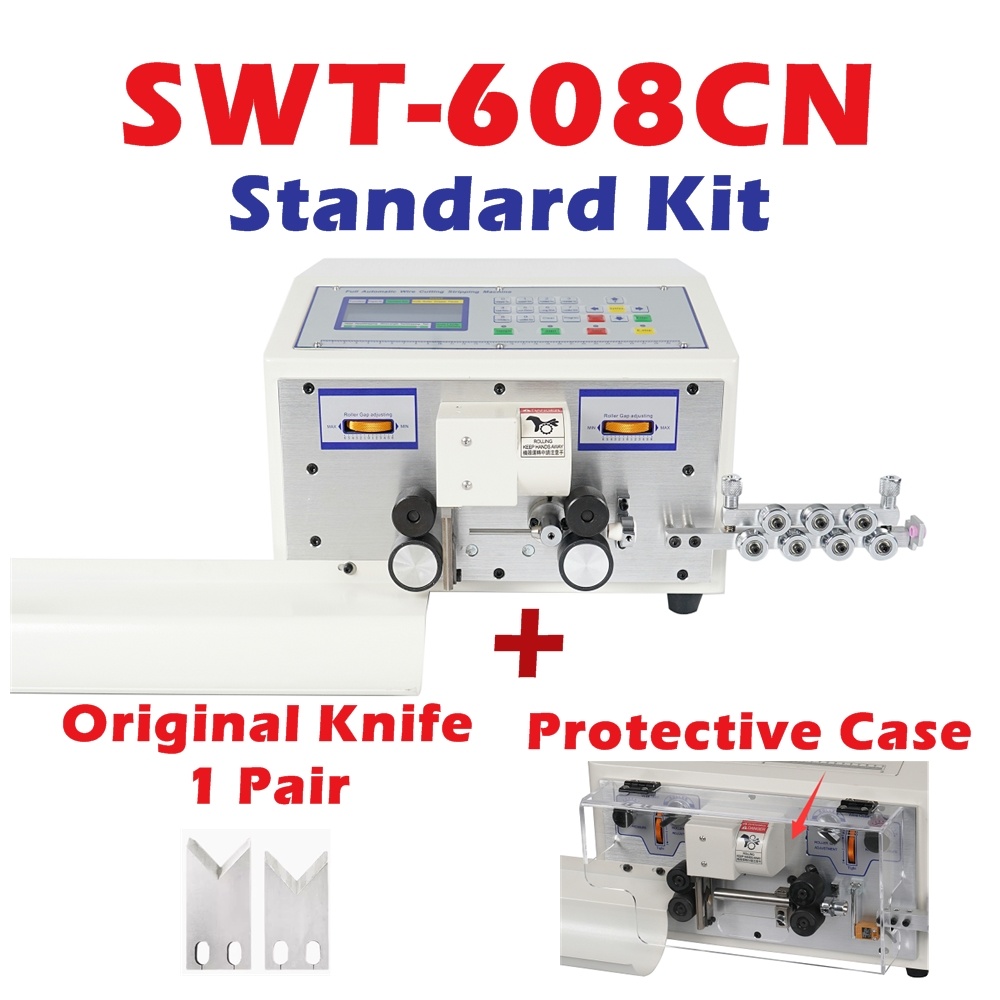

3. SWT-608-CN Standard Kit + 1 Pair More Knife + Protective Case

Product Description

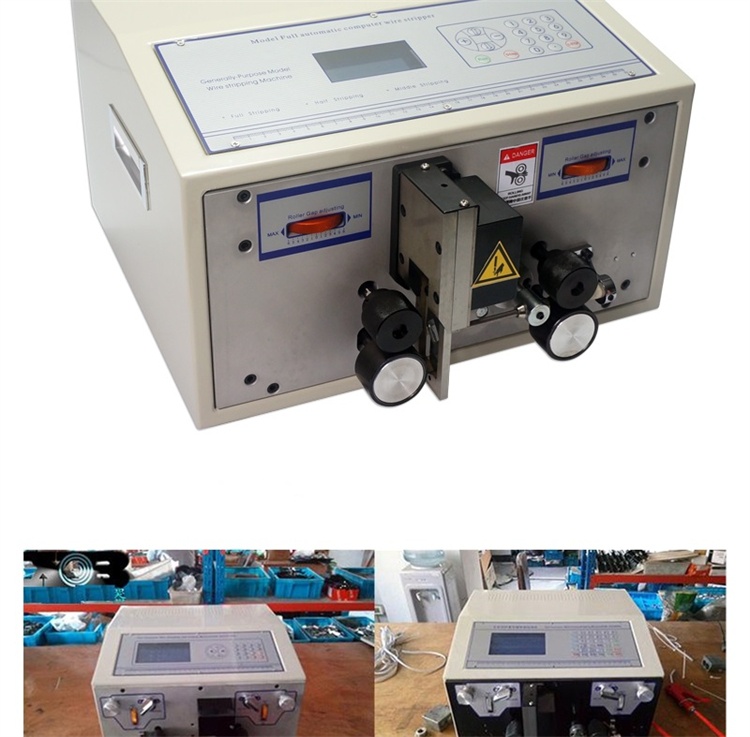

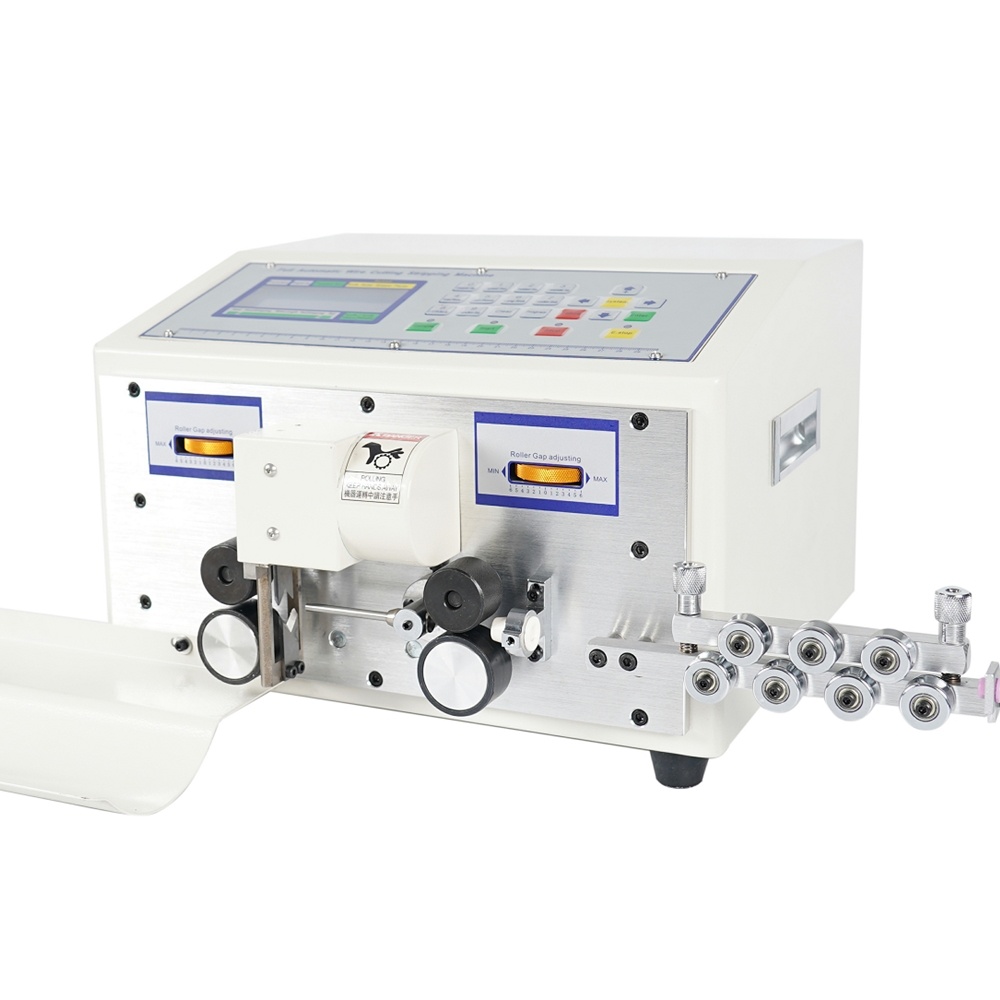

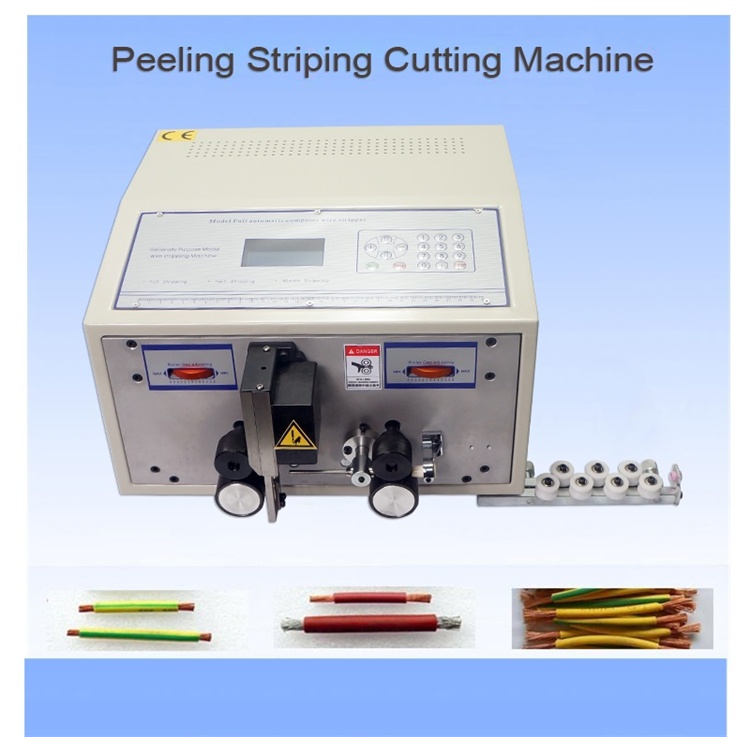

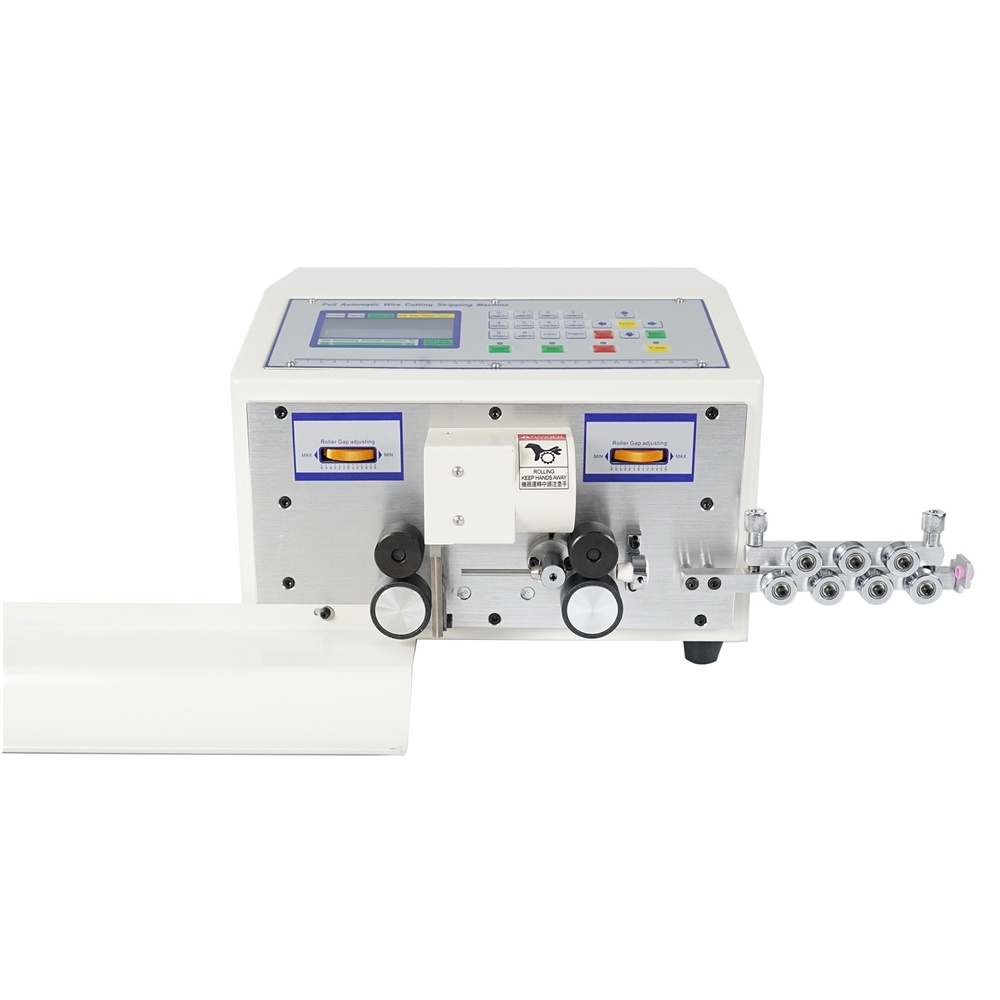

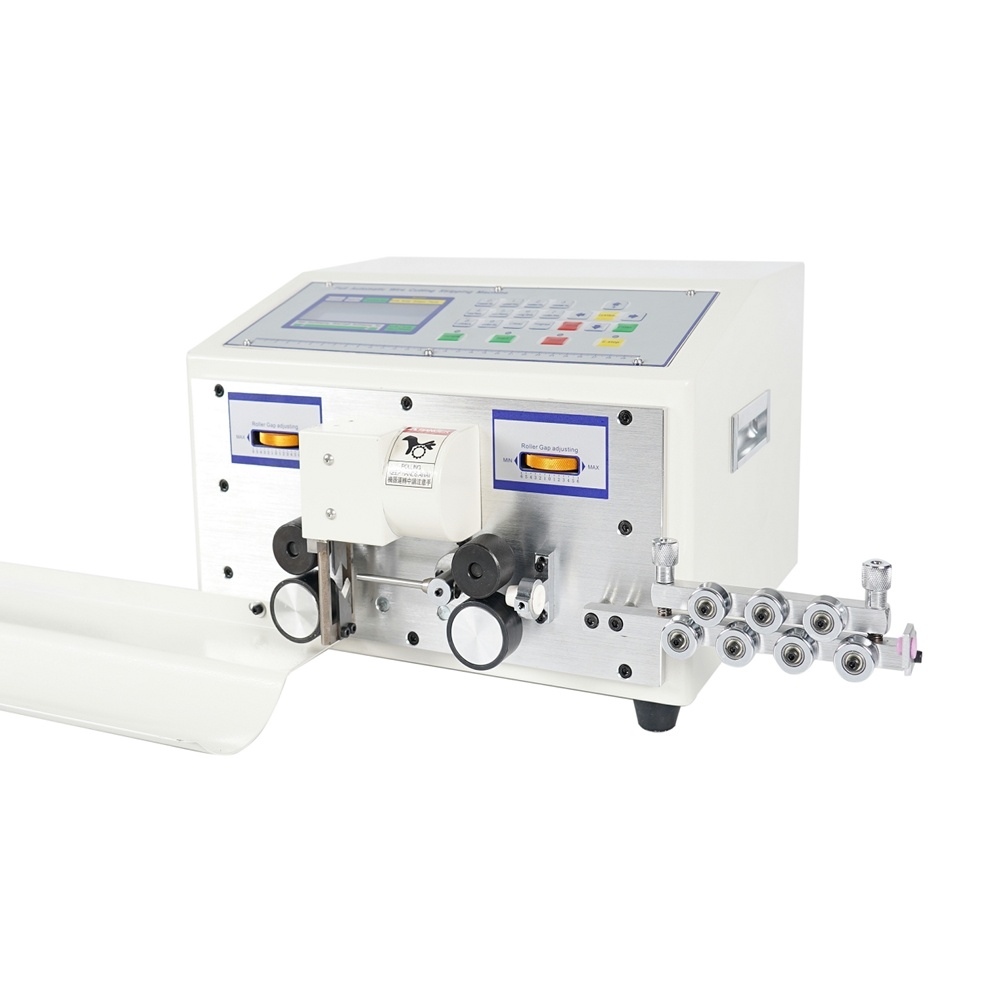

Computer Wire Peeling Striping Cutting Machine/ computer strip wire machine 2.5mm2 SWT-608C

 The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

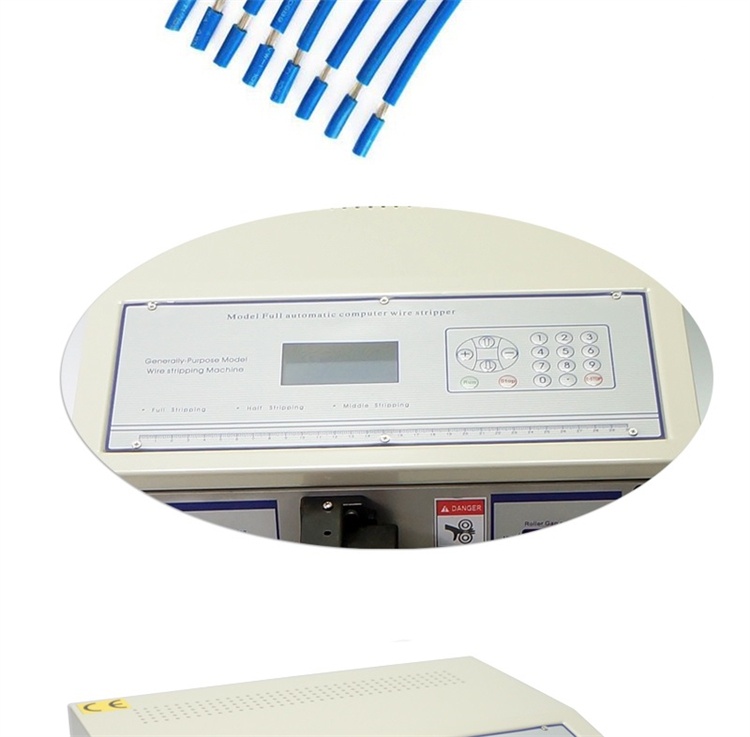

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function

Applications:

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

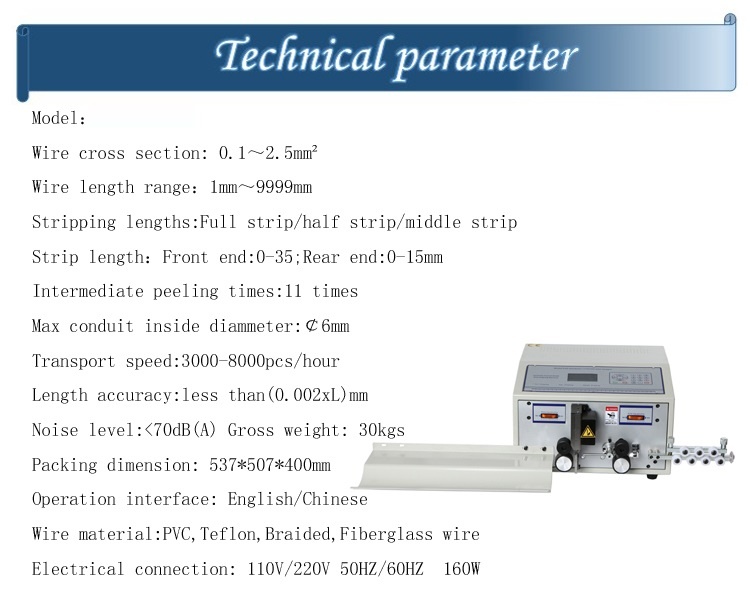

 Technical parameters:

Model：SWT608-C/N（Two-wheel drive wire stripper）

Weight：27KG

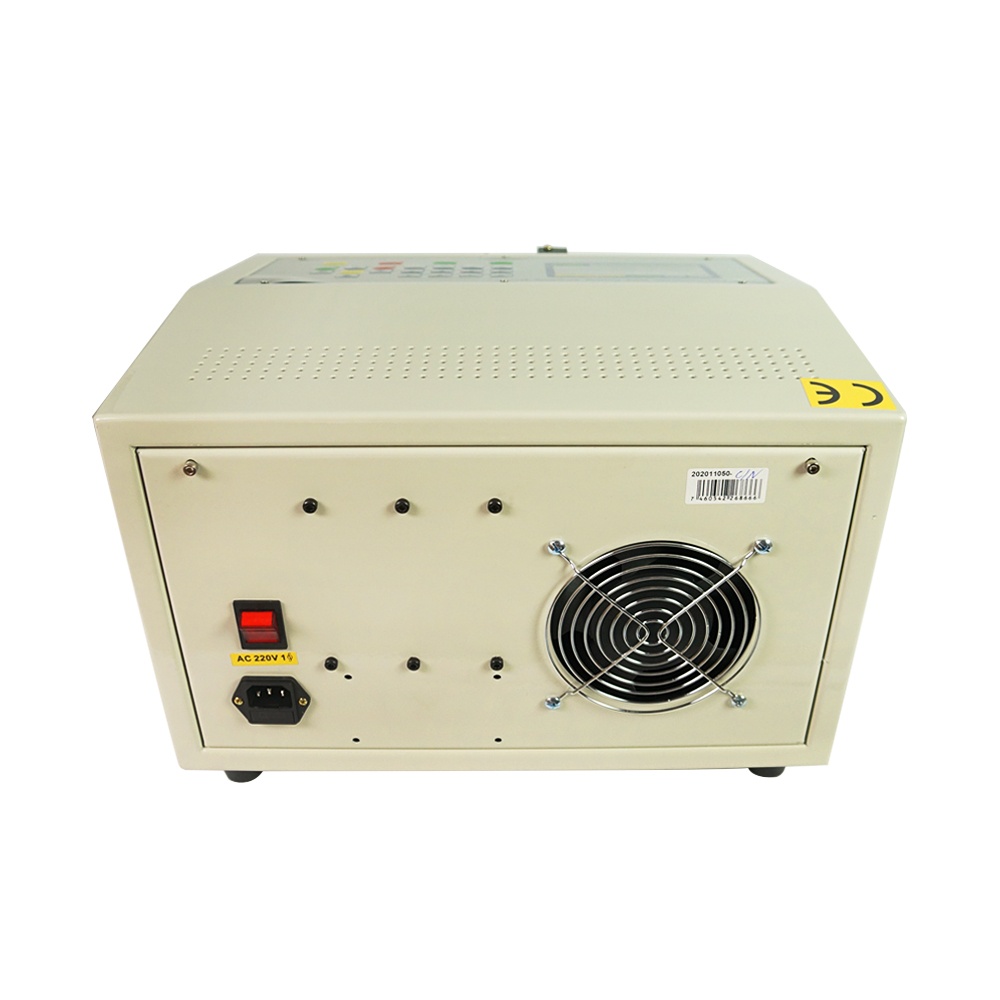

Electrical connection: 110V/220V 50HZ/60HZ

Power：200W

Operation interface: English/Chinese (LCD display)

Machine dimension: 460*470*325mm

Wire length range：1～10000mm

Strip length：Front end:0-30;rear end:0-15mm

Length accuracy： ± (0.002xL)mm

Intermediate peeling times:13 times

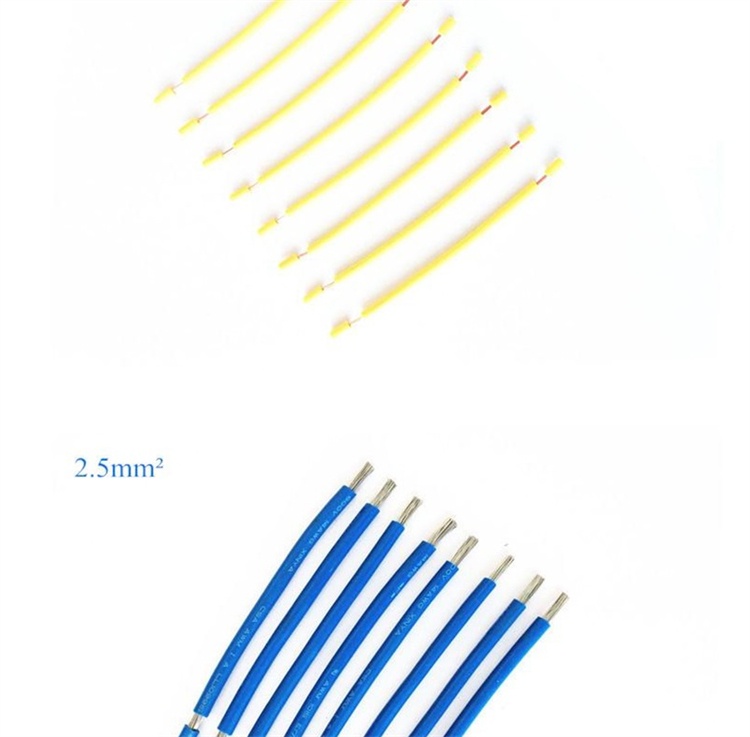

Wire cross section: 0.1～2.5mm²

Max conduit inside diameter:￠6mm

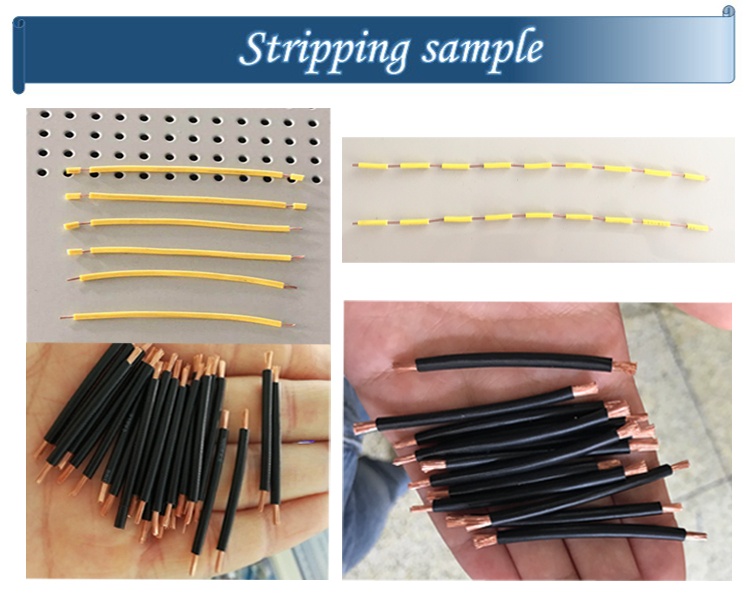

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material: hard tungsten steel

Transport speed: (L=100MM piece/hour） 4000-5000 pieces

Driving mode: two-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.

(0 is the slowest, 9 is the fastest)
