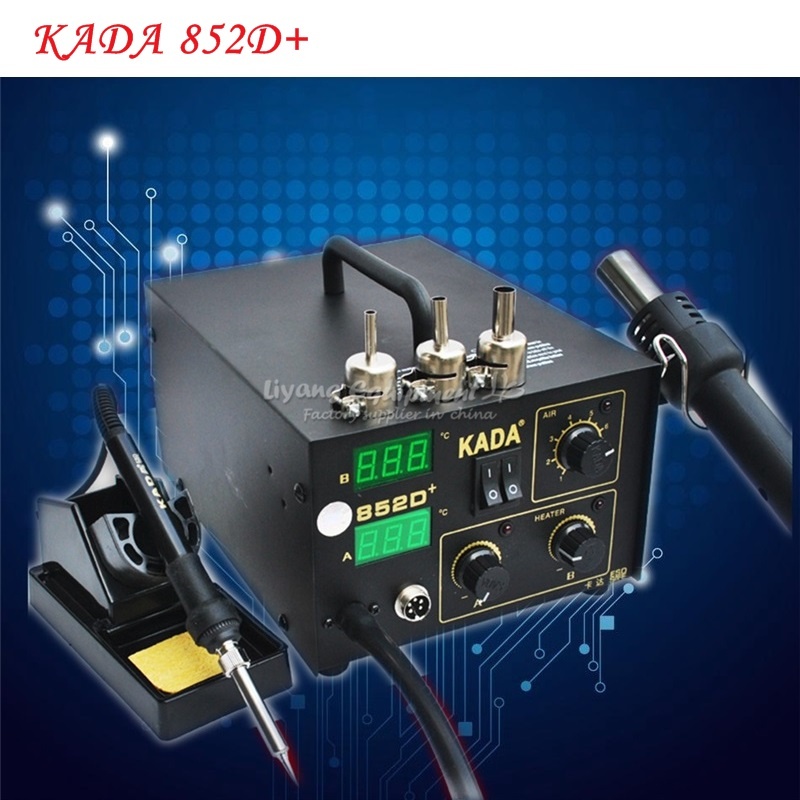

220V/110V KADA 852D+ SMD repairing system BGA soldering station Hot air gun & solder iron 2 in 1
Reviews(1)
Product Detail
Product Tags
220V/110V KADA 852D+ SMD repairing system BGA soldering station Hot air gun & solder iron 2 in 1
Specification:
Power Voltage: 110v 220v
Power Consumption: 270W (Max.)
Pump: Diaphragm Pump
Capacity: 24L/min (Max.)
Leakage Voltage of Iron Tip: <0.5mV
Standard Iron Tip: AT-900M
Hot Air Temperature: 100 to 480C
Tip of Iron Temperature: 200 to 480C
Outer Dimensions: 187(W)x150(H)x245(D)mm
Weight: Around 4 Kilo with Packing
Packing included:
Rework station with Air Output
Rework tray
Soldering iron holder
Soldering iron
Soldering Iron Foam
3 Single Nozzles
| Place of Origin: Guangdong China (Mainland) | Brand Name: KADA | Model Number: 852D+ Soldering Stations |
| Voltage: 220V or 110V | Rated Capacity: 270W (Max.) | Dimensions: 187(W)x150(H)x245(D)mm |
| Weight: 5.5kgs | Usage: Soldering Stations | function: SMD Soldering Stations |
| Power Consumption:: 270W (Max.) | Capacity:: 24L/min (Max.) | Leakage Voltage of Iron Tip:: <0.5mV |
| Standard Iron Tip:: AT-900M | Tip of Iron Temperature:: 200 to 480C | heat gun Temperature:: 100 to 480C |
| Pump:: Diaphragm Pump | 5 Single Nozzles: ( 2mm / 3mm / 5mm / 6mm / 10… | Lead time:: 2-3 workdays |
Packaging & Delivery
| Packaging Detail: | standard export carton |
| Delivery Detail | 1 ~2 days for 10pcs or less, if more, depands on quantity |
Specifications
Soldering Stations KADA 852D+
1. Soldering Stations Iron Temp.: 200 to 480C
2. Soldering Stations Heat Guns Temp.: 100 to 480
Thanks for your order!

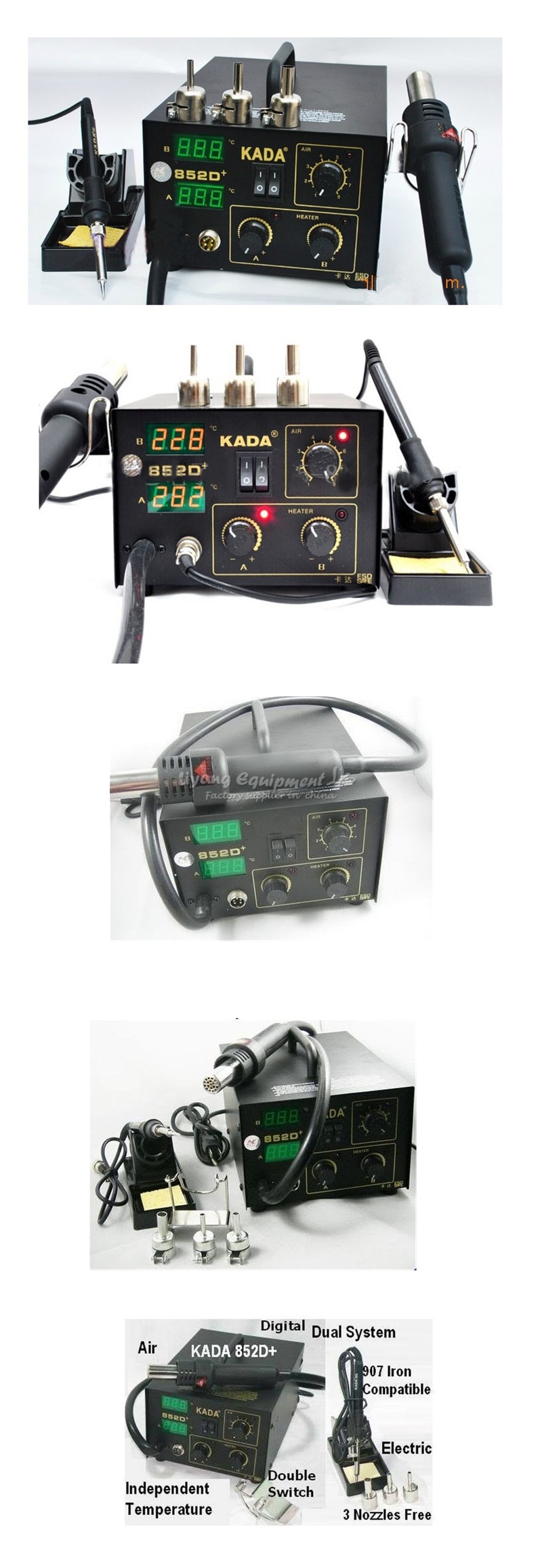

Product Pictures
