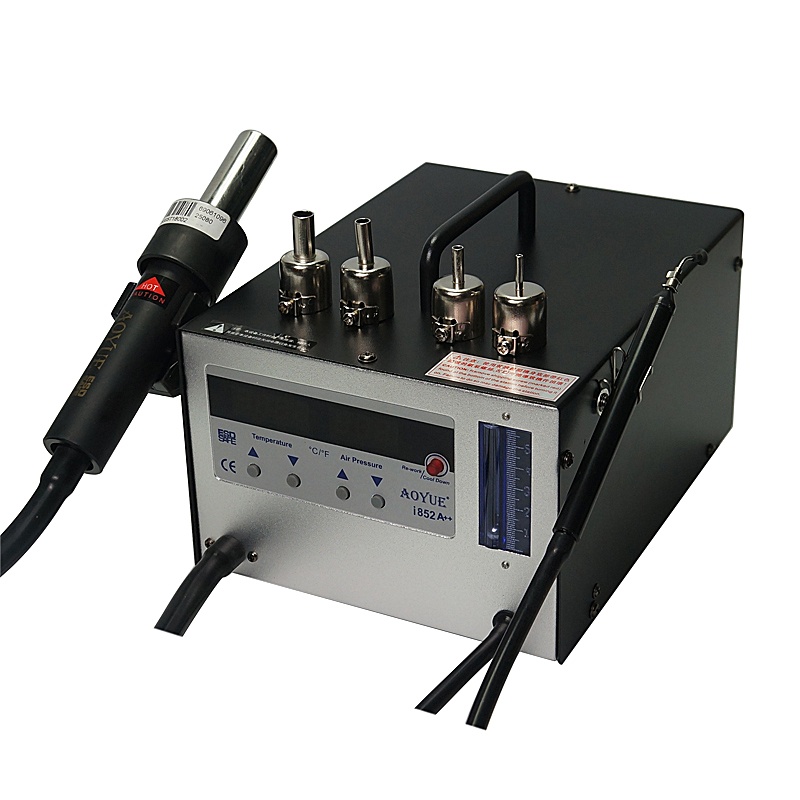

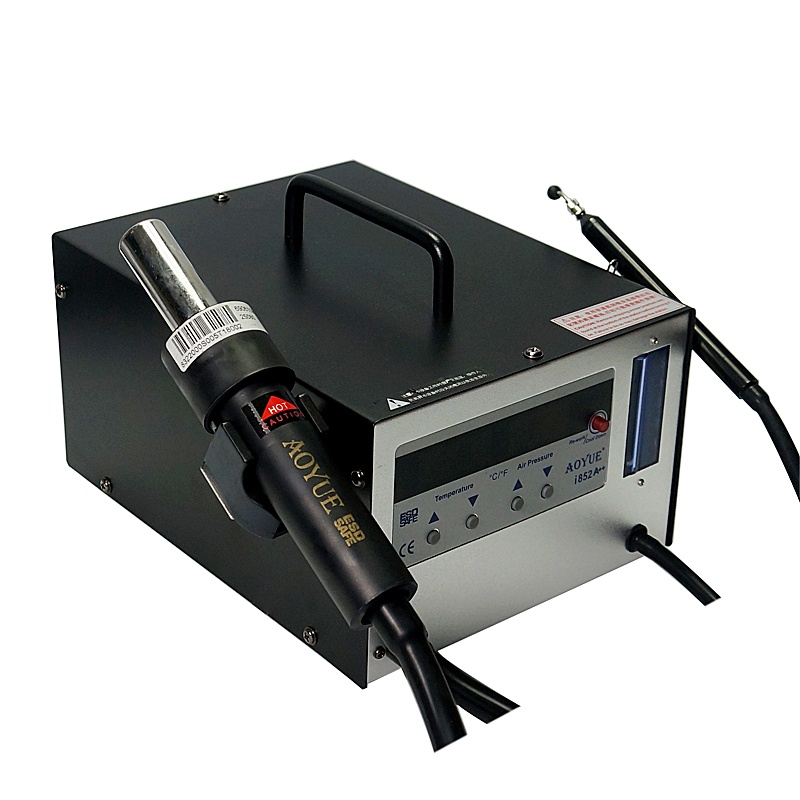

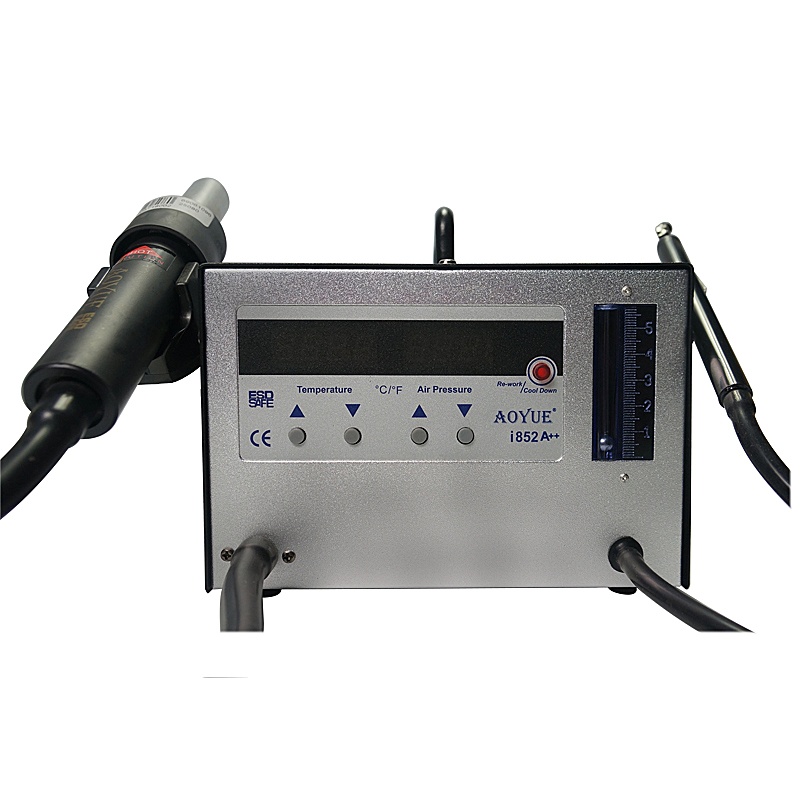

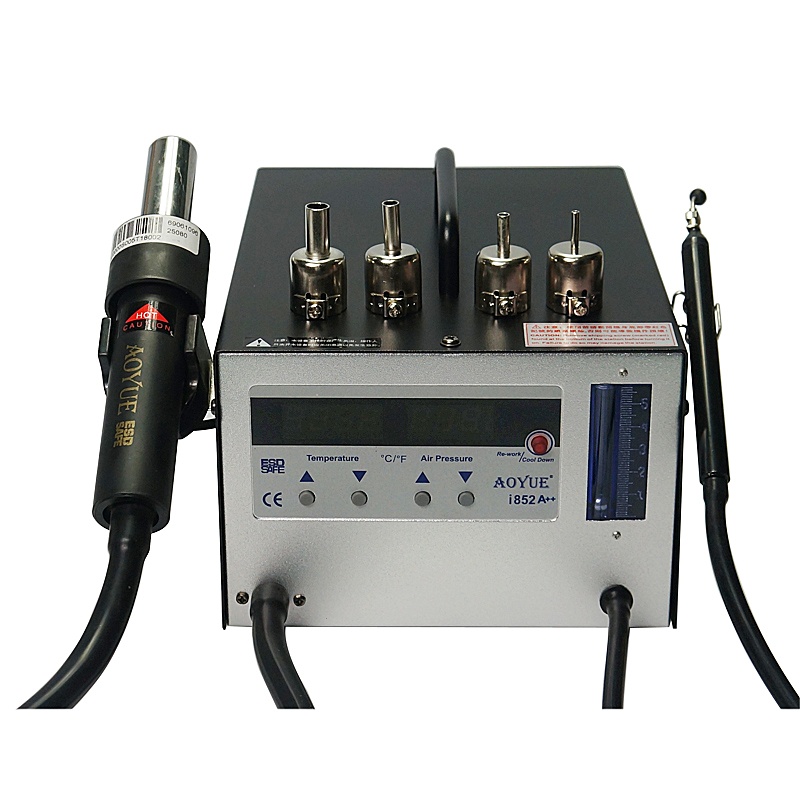

NEW 220V AOYUE 852A++ SMD Hot Air Gun Soldering station/Desoldering Station,Aoyue852A++ Hot Air Rework Station

NEW 220V AOYUE 852A++ SMD Hot Air Gun Soldering station/Desoldering Station,Aoyue852A++ Hot Air Rework Station

Item specifics

Model Number:   852A++ Input

Voltagle:   220V

Dimensions:   188 x 244 x 127mm

Output Power:   500W

Output Temperature:   100- 480 C

HEATING ELEMENT:   Metal Heating Core

PUMP TYPE:   Diaphragm Special-Purpose Lathe Pump

AIR CAPACITY:   23 L/min (max)

Features:

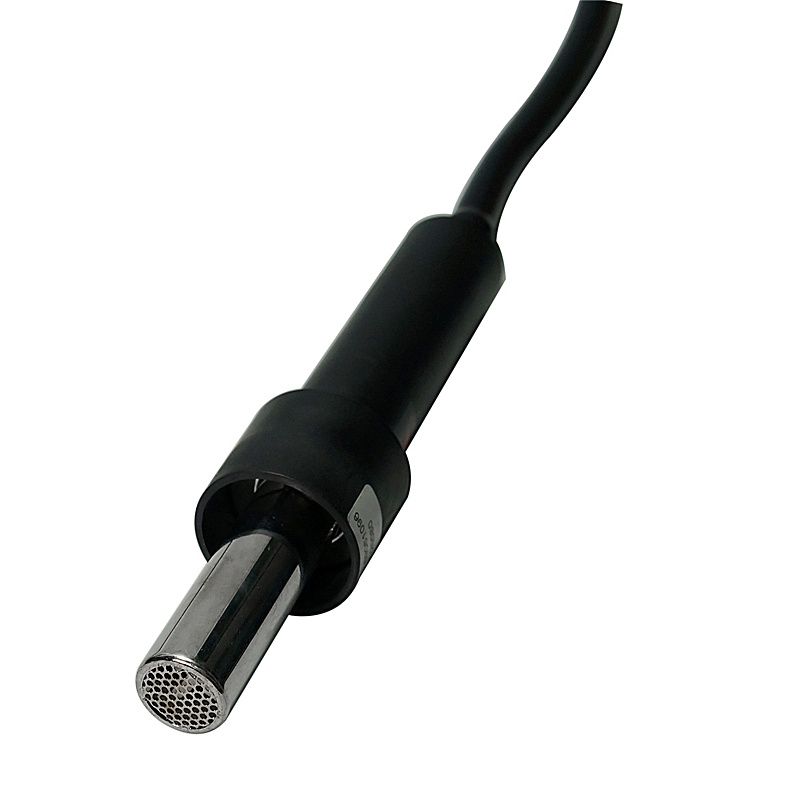

Loosen the 3 screws that secure the handle.

Slide off the plastic tube.

Inside the pipe, the quartz glass and heat insulation is installed.

Peel of the protection tube covering the thermal sensor wires,unsolder the wires andfrom etach from the base.

Loosen the clip securing the heating element to the base of the hand-piece and slide out the heating element.

Insert new heating element and reconnect the thermal sensor wires, use heat-shrink-tubes to avoid shorting of thermal sensor. Be careful not to rub Heating Element wire.

Reconnect the ground wire after replacing the element.its components.

Assemble the handle again.
