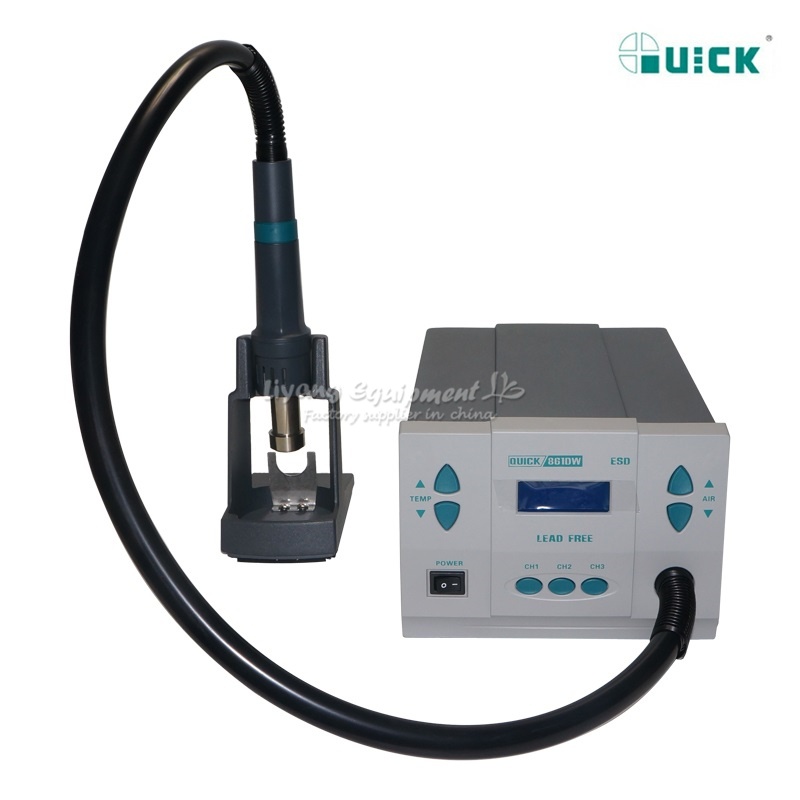

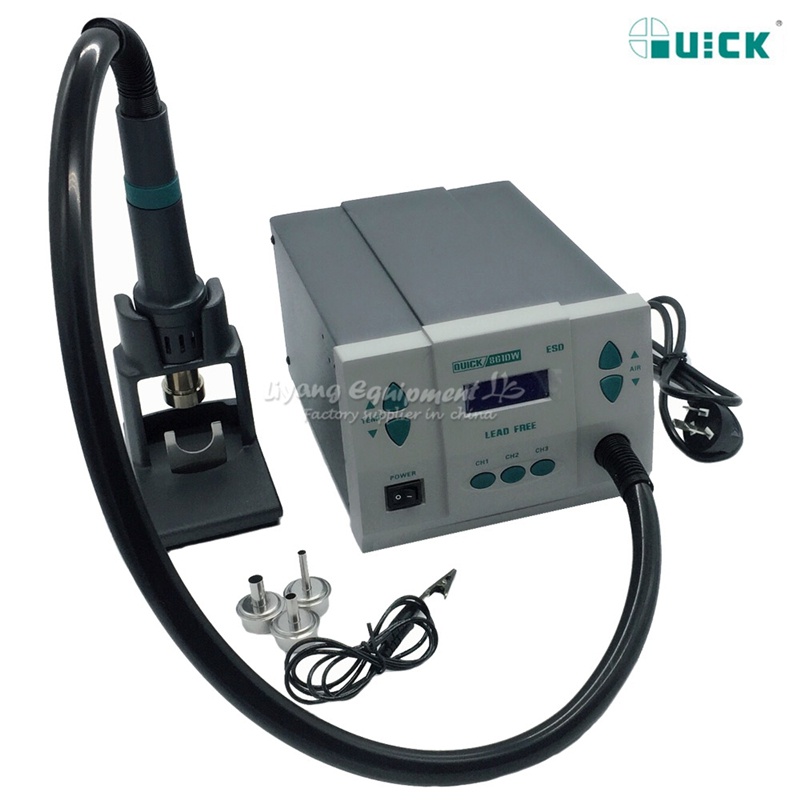

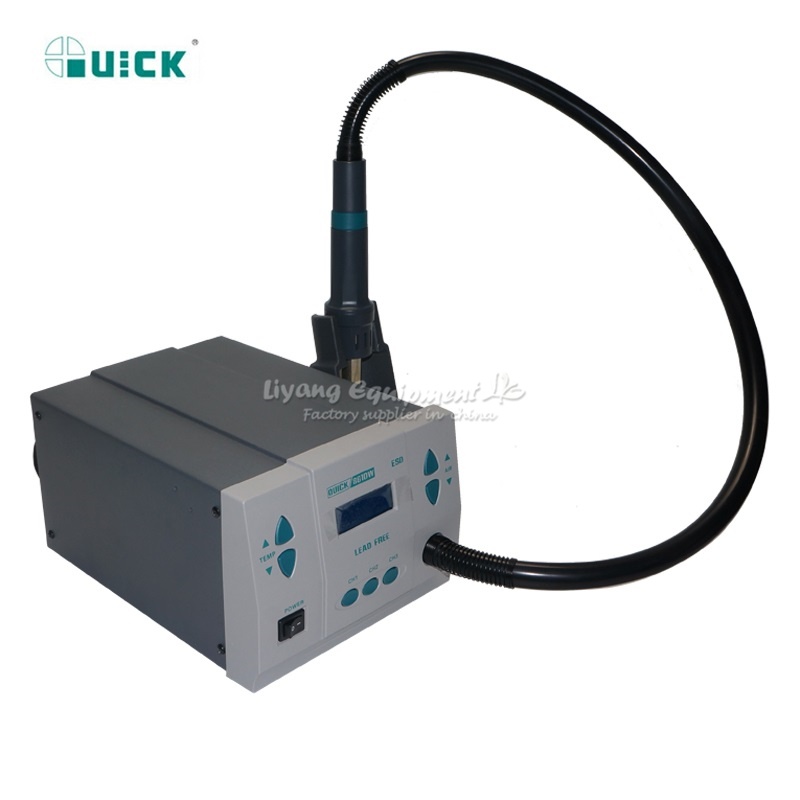

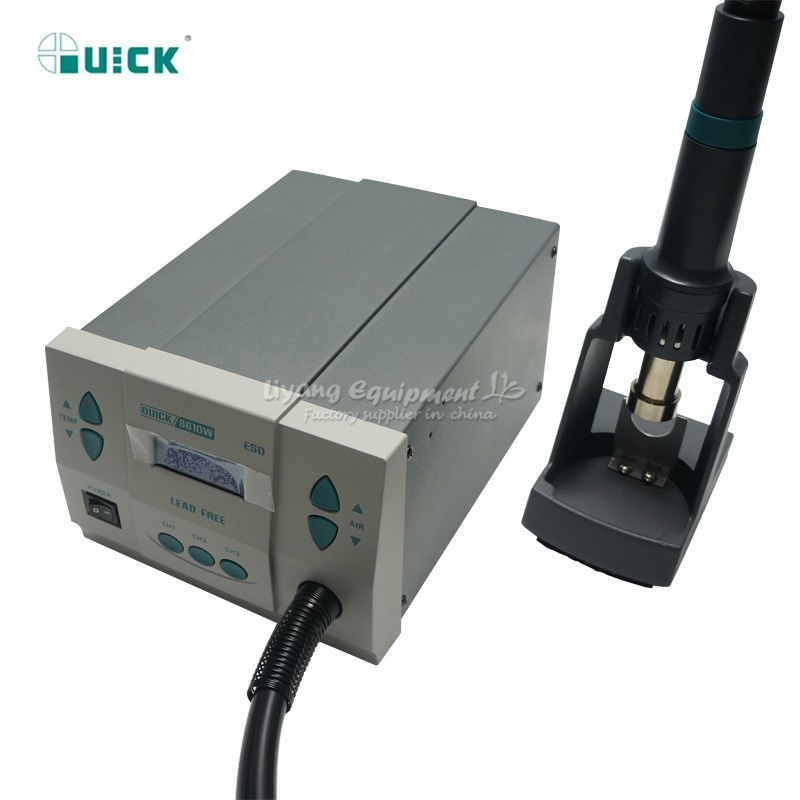

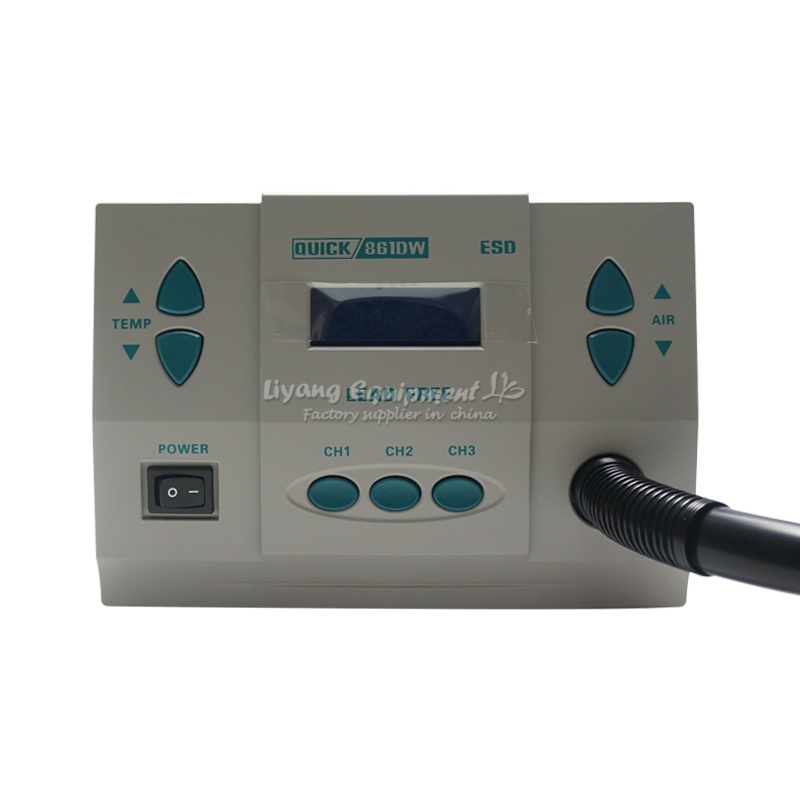

QUICK Spot 861DW Hot Air Rework station soldering station

QUICK  Spot 861DW Hot Air Rework station soldering station

1. Has CH1, CH2, CH3 three working channels , and each channel can be set to the amount of wind , and temperature.

2. With password protection and key lock function .

3. To facilitate real-time operation , with a magnetic switch control lever is placed in the handle holder immediately into hibernation .

4. With automatic sleep function , in a dormant state parameters can be set .

5. Sensor closed loop, microcomputer zero trigger temperature control, power, heating quickly , easily and precisely adjust the temperature stable , free from the influence of wind .

6. vortex brushless fans, air flow adjustable , wide range , can be adapted to a variety of uses .

7. The system has an automatic cooling function of wind capacity , extend the life of the heating element and protect the hot air handle.

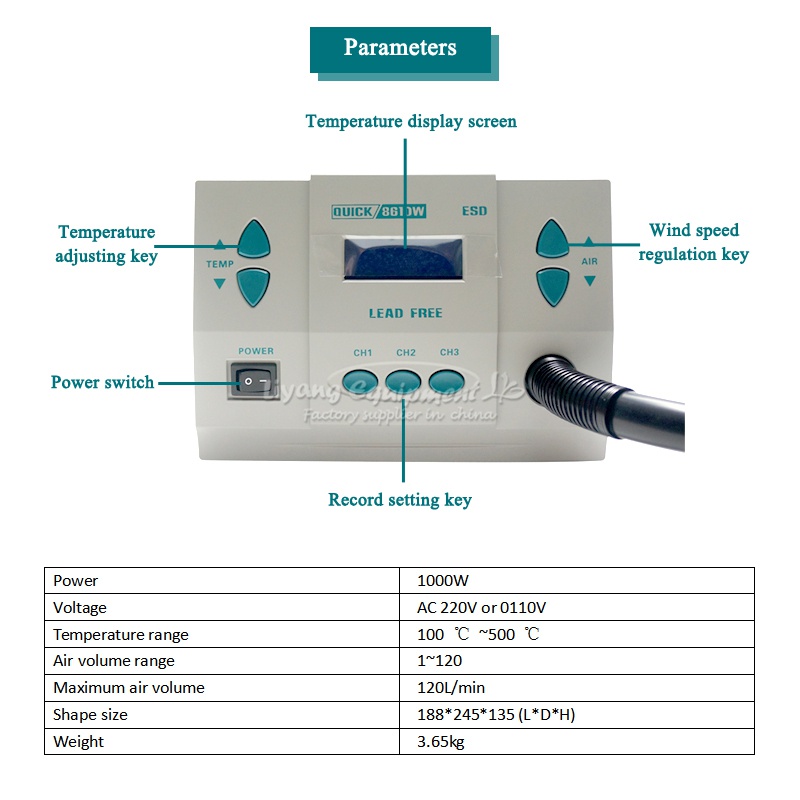

Regulation Georgia

 Power 1000W

Voltage AC 220V(110v is only avaible after February ,if you want to use it, you can add the voltage transformer)

Temperature Range 100 ~ 500

Air volume ratio range 1 ~ 120

Maximum air flow 120 L / min

Dimensions 188 (L) × 245 (D) × 135 (H) mm

Weight About 3.65 kg

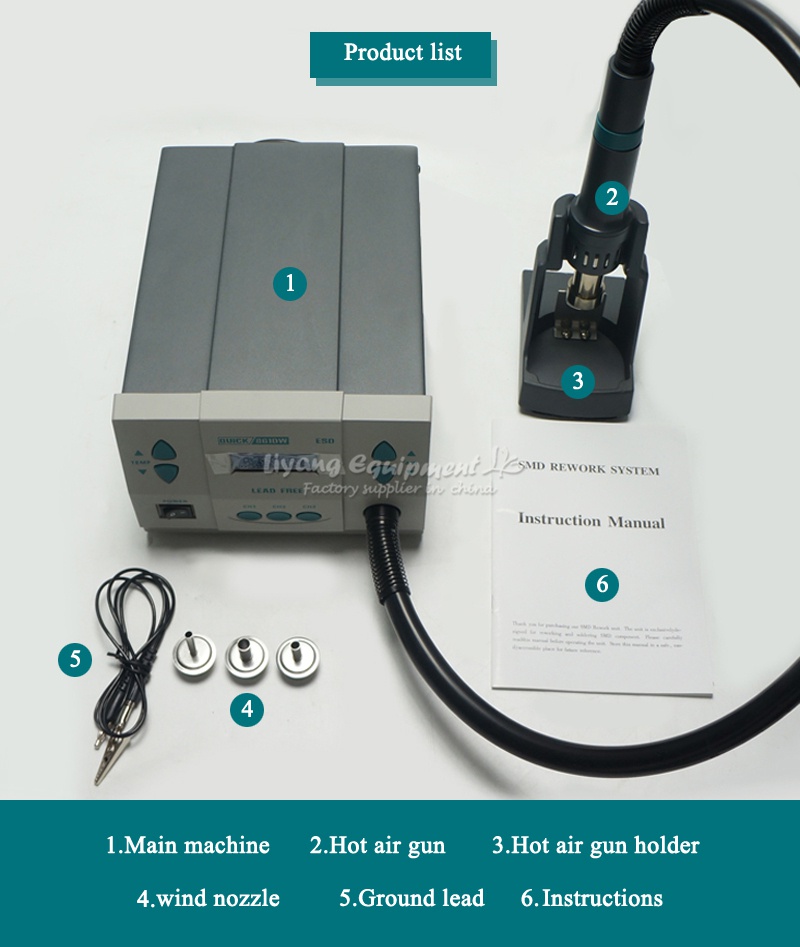

Packing list：

1x QUICK 861DW

1x Air gun stand

3x Nozzle

1x Ground wire
