YAXUN 999 Newest 110V/220V Built-In Air Pump Vacuum Separator ,mobile LCD touch screen seperate machine, preheating station

YAXUN 999 Newest 110V/220V Built-In Air Pump Vacuum Separator ,mobile LCD touch screen seperate machine, preheating station

Model: YX999

Instruction:

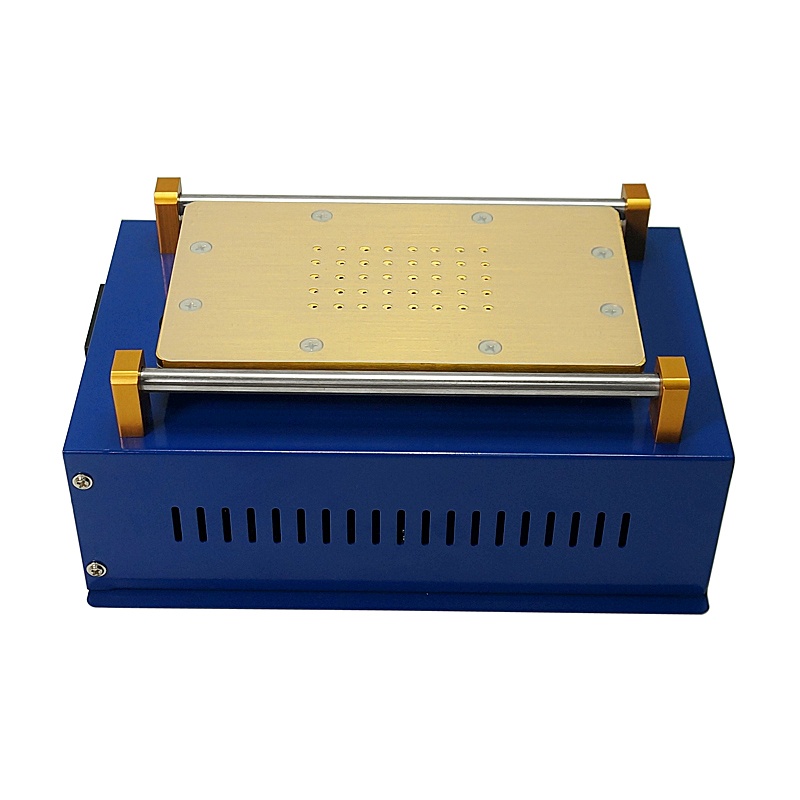

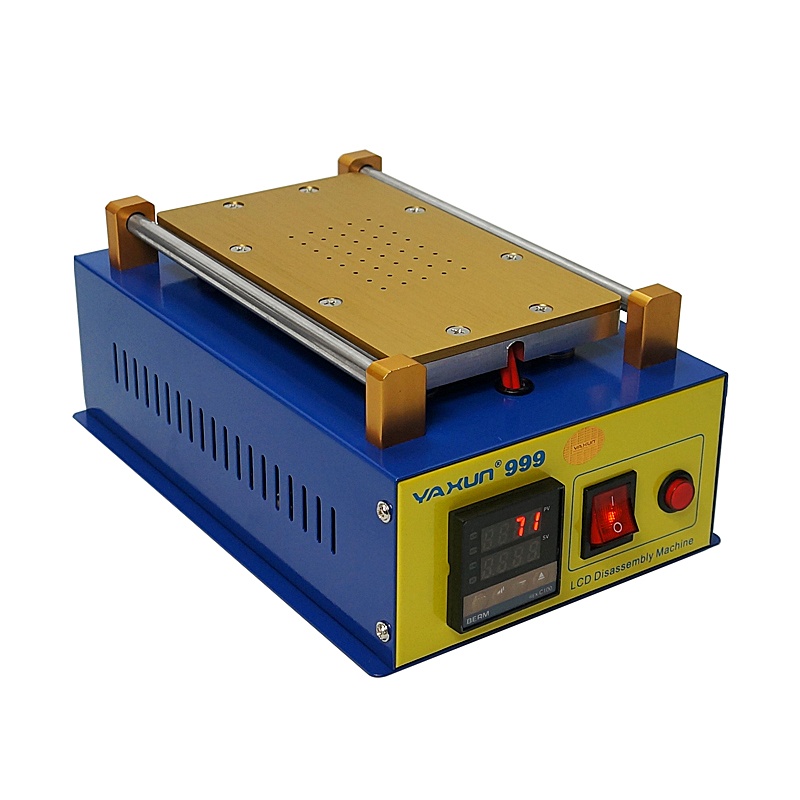

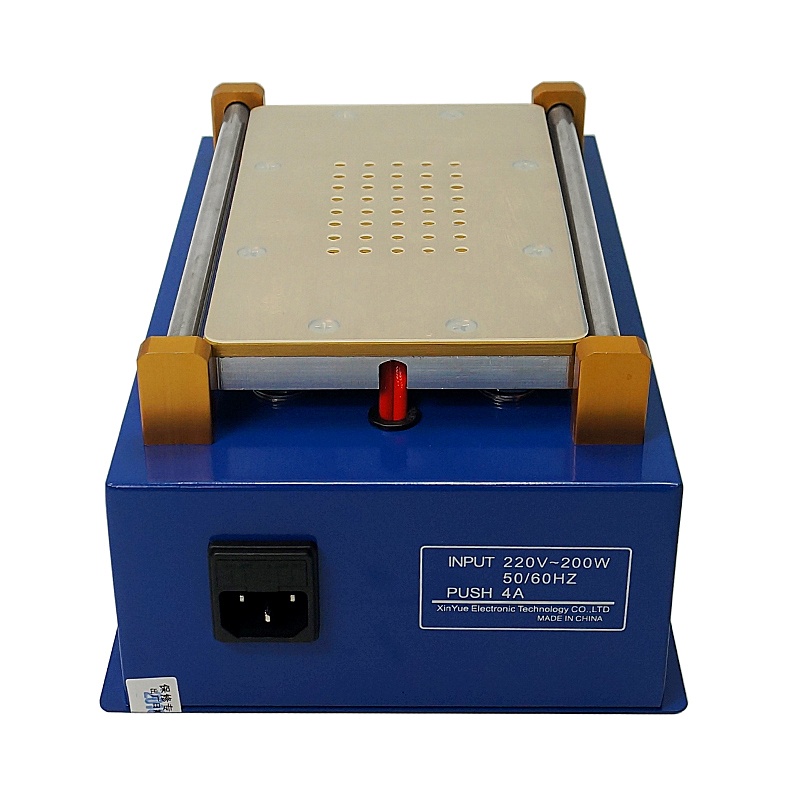

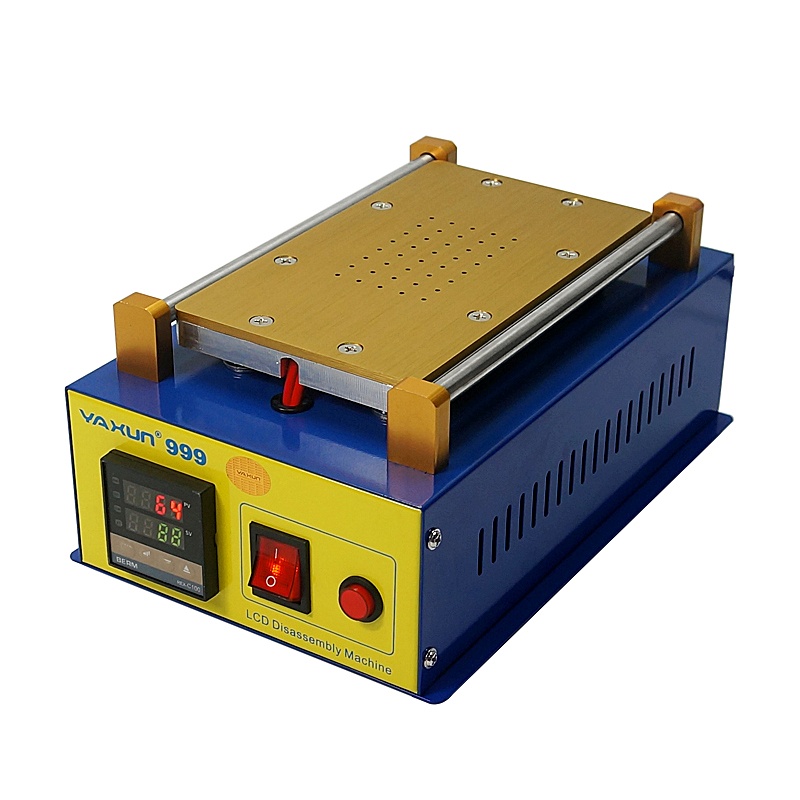

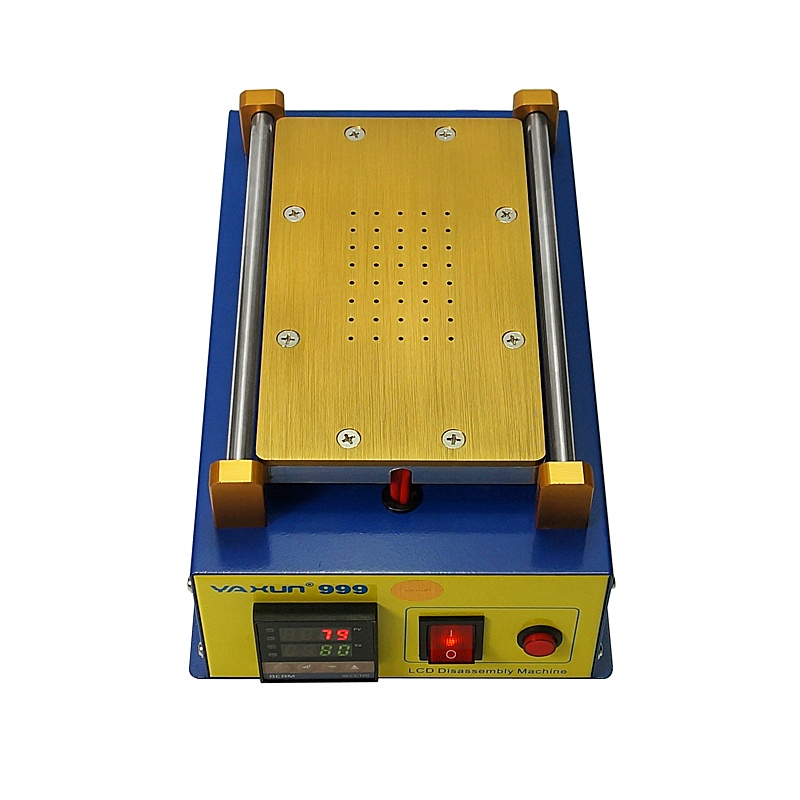

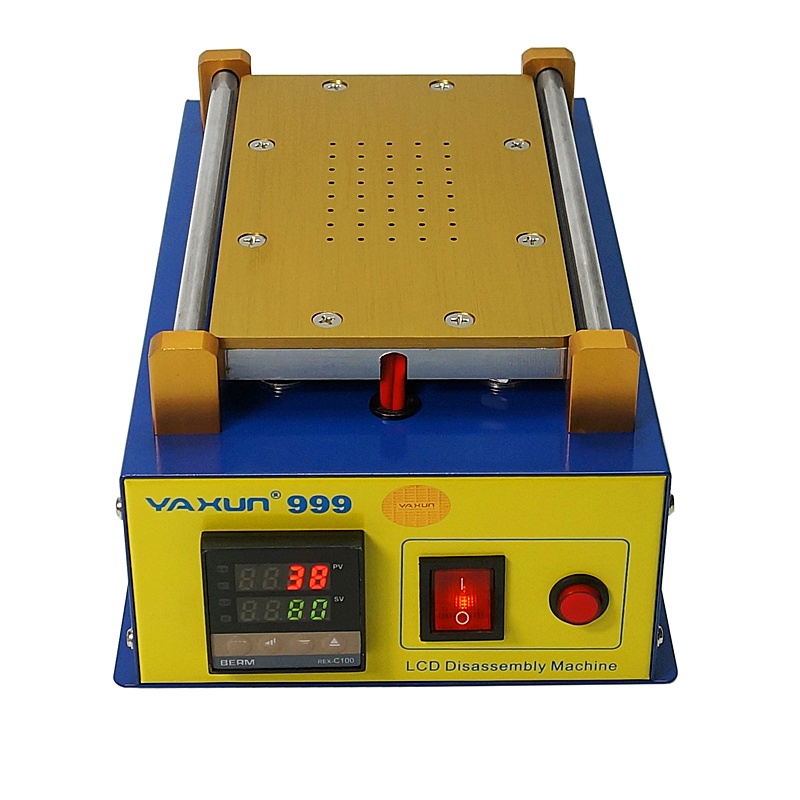

This LCD separator machine is used to replace the LCD of various size cell phones, such as the For Samsung Galaxy S2, S3, S4, S5, Note, iPhone 4/4S/5/5S and any other cell phones, its size is suit for  less than 7 inch screen seperating. Its voltage is 110V / 220V. Made by alloy-aluminum, the heating plates enjoy the characteristics of shape stability and well-distributed heat conduction even under a high temperature. The four adjustable fixed clamps are used to hold the replacement part to make it fix in the plate. At the same time, the LED display will guide you how to operate.

Item Features:

1. Auto heating metal plate, maximum temperature is 400 centigrade

2. Safety power system inside, avoiding the electric leakage problem

3. Anti static body material, prevent the LCD and the flex cable being damaged from the static

4. Easy installation

5. Silicon mat to stick the touch screen without any damaged

6. Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhone and galaxy series.

7. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform

8. Compatible for LCD or LED screen assembly

Work steps:

1. Flat the LCD assembly up-down on this plate.

2. Fix it with the four adjustable clamps

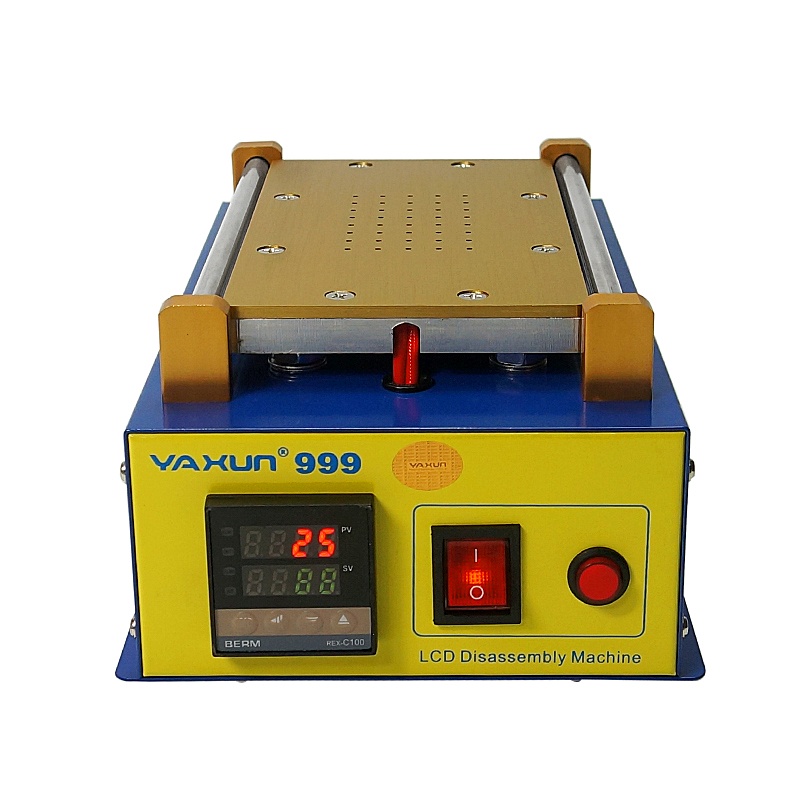

3. Adjust the MAXIMUM temperature with the three buttons on the front, which ranks from 0 up to 400 degree, but for the phones, you should never go to this high, 90 degree is generally safe and enough.

4. Wait for one to two minutes then separate the LCD by cutting the melt glue with the strong alloy Gold wire (included), you can simply use any two pencils, or you can use the supplied two small sticks for more comfort.

5. Then glass is separated from the LCD.

Tips:

1. Do not set the temperature to more than 110 Celsius degree when operating; otherwise the high temperature may destroy the LCD Screen.

2. If your country use 110v electric, please inform us or leave a message

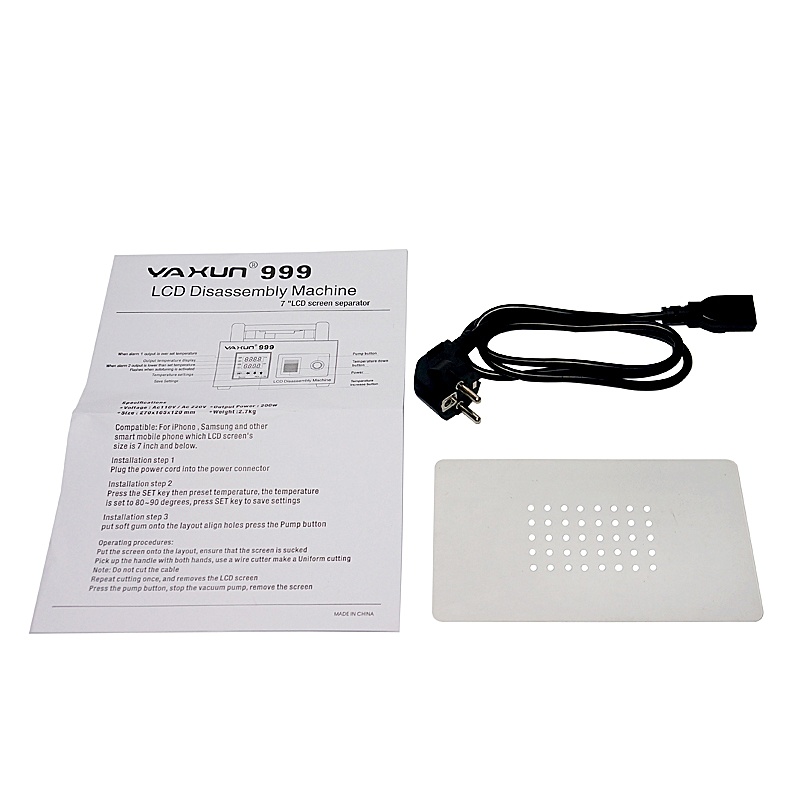

Package Contents:

1 * LCD Saparator Machine for mobile

1 * Power Cord (US/UK/EU/AU Plug)

1 * Cutting Line

Thanks for your order!
