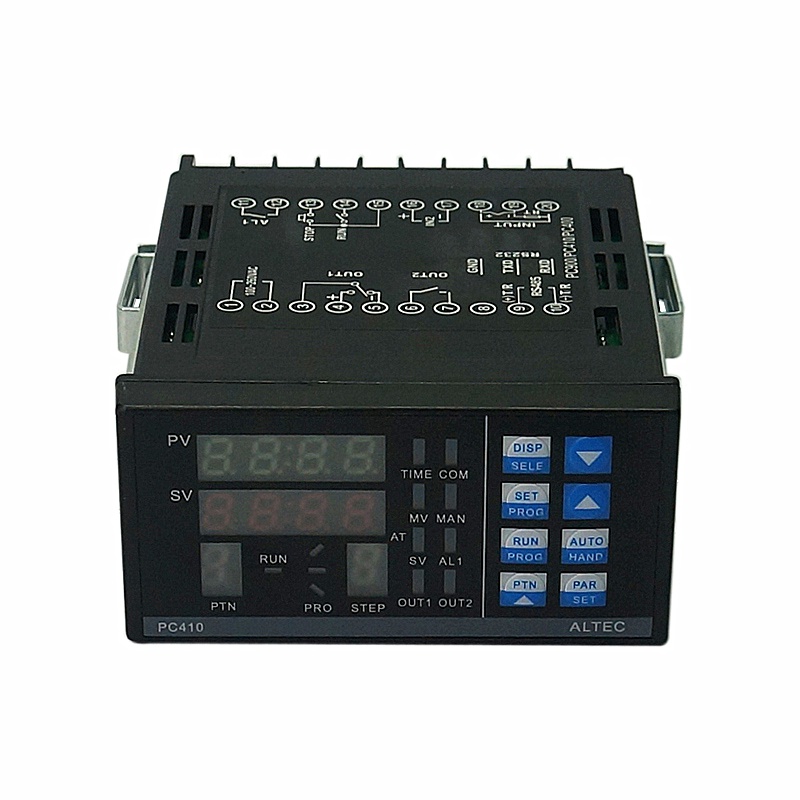

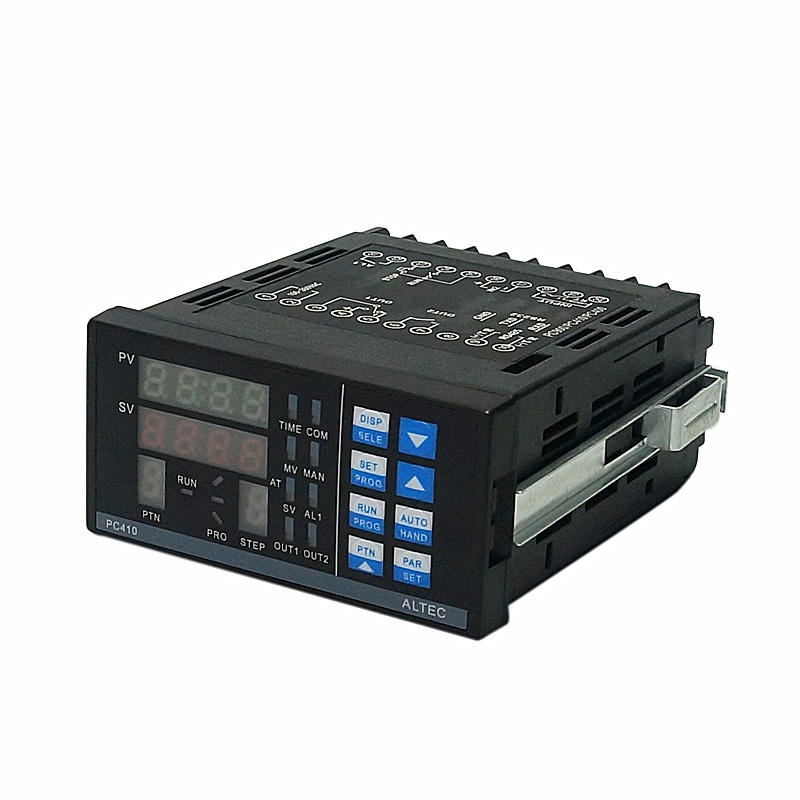

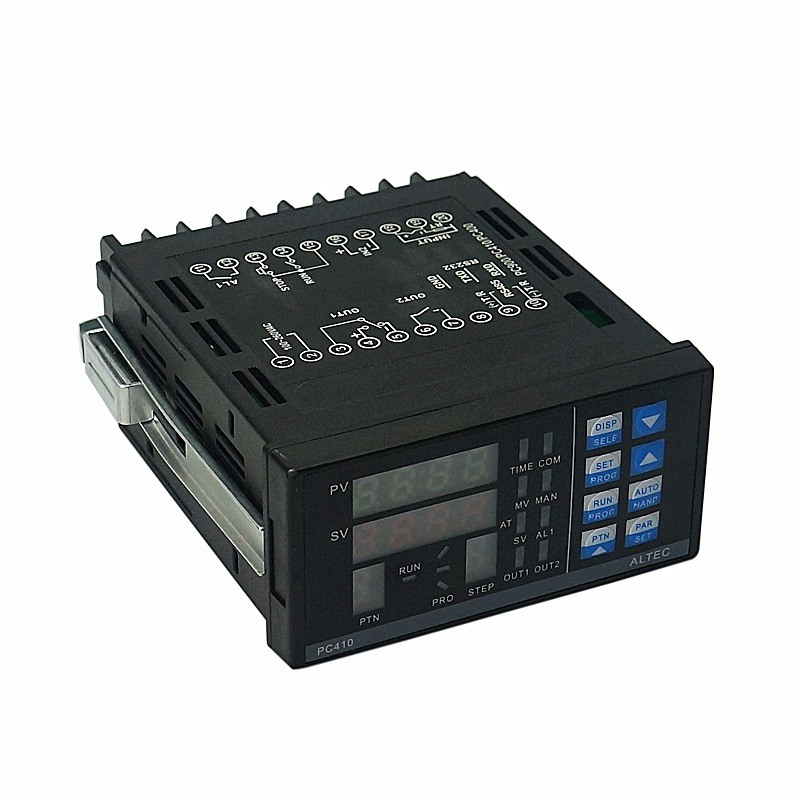

ALTEC PC410 Temperature Controller Panel For BGA Rework Station Soldering Machine Parts

ALTEC PC410 Temperature Controller Panel For BGA Rework Station Soldering Machine Parts

Features:
Name : digital temperature controller
Model Number: PC410
Usage: For BGA Rework Station Soldering Machine Parts

Accuracy: +-0.2%FS+1
Cycle: 125ms

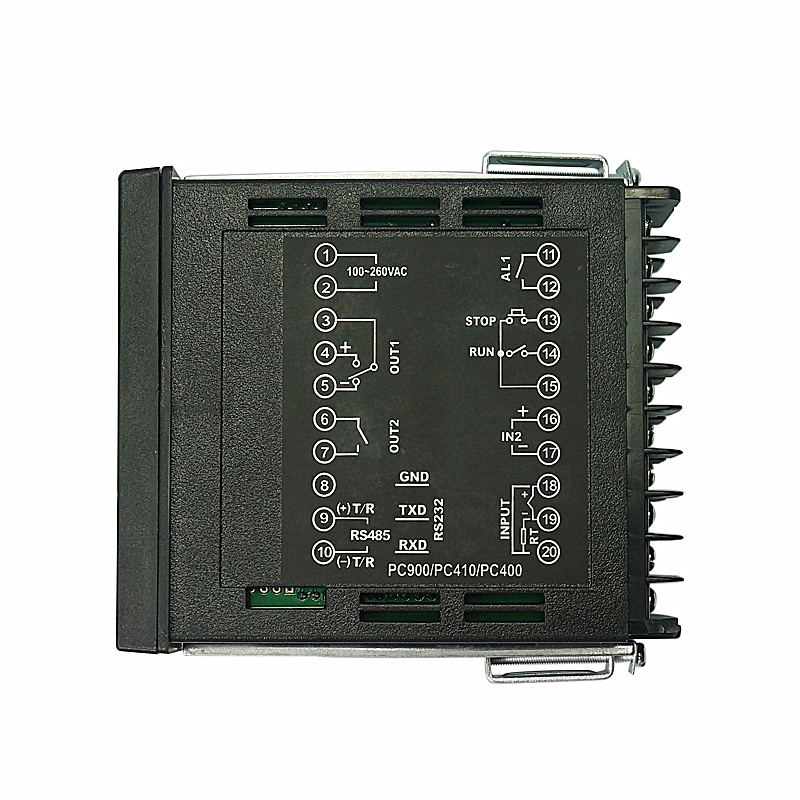

Input:
Thermocouple:K
RTD:Pt100, Cu50
Line input: 0~20mA, 4~20mA, -10.0~50.0mV, 0~10V

OUTPUT:
Relay(max.250VAC,3A)
20V/20mA,SSR
Analog,0~10mA, 4~20mA, 0~20mA 0~5V, 1~5V, 0~10V

Curve contrl:
Length:8 segments programs
curve number:10
Cycle:1-200T
Port: RS-232
Voltage: 85~264VAC, 45/60Hz
Working temperature: 0~50 degree, humidity≤8

Product configuration:
1pcs … PC410 temperature control panel
